Carousel
Rotating platform with repeated horses and supports
Earlier examples from earlier Kiln versions.

Drag to orbit after opening. The model starts stationary.
For your engine. The download is a standard glTF 2.0 binary (GLB) with PBR metallic-roughness materials. Optional extensions declared by this file: KHR_materials_emissive_strength. Importer support varies; see the Blender and Unity guide. glTF stores materials, not lighting or tone mapping, so your engine decides how they read. This 3D view tone-maps with Review Neutral, the Khronos PBR Neutral construction with a smaller glare offset (0.015 instead of 0.04), at exposure 0.9. Its Tone mapping control also shows ACES and Linear, for comparison.
Build measurements
- Triangles
- 16,356
- Estimated draws
- 664
- Materials
- 17
- Textures
- 0
- Animation clips
- 1
- Bounds X × Y × Z
- 6.84 × 5.88 × 6.84 m
- Build warnings
- 0
Measurements come from this build.
Download this build
Runtime: 188,848 bytes. Original: 188,624 bytes.
These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.
Runtime provenance metadataSHA-256 download hashes
- Runtime GLB
- 205d214e409e4f018d15852dbccd541b0de904f2785eb4c9e5e20fc88ff279b0
- Original GLB
- ae965e4ecccd963fff68adabf338ef4586d8d55881af60442fab14593c96e76e
- Source
- 1ba984c76709d0f59d6f4eb57710b00715cebe42f9c5eeff82bfef214dfe43b7
The example source is part of the Kiln repository. Repository licence: MIT.
These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.
Recorded authorship
Gemini 3.8 Flash through Antigravity CLI (agy)
Source-header credit
- Source access
- Not recorded
- Inherited context
- Not independently recorded; source-header declarations only
- Starting example
- Not recorded
- Human input
- Header declares no hand-authored source; other intervention not recorded
- Authoring review
- Six-view review declared; renderer fidelity not recorded

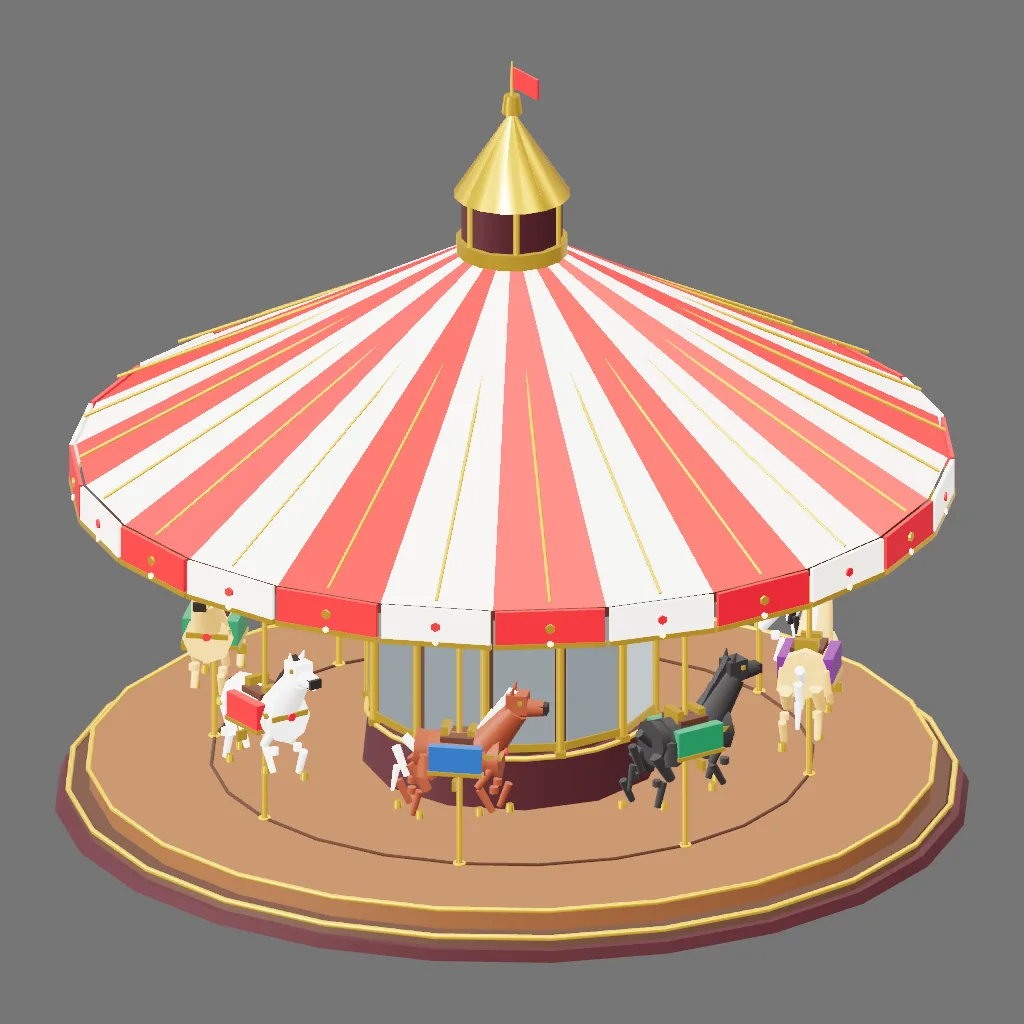

Picture rendered from an earlier revision of this source.
The source behind this build
// Maintainer revision: flush-face fix (2026-11-12, Claude Sonnet 5.5 via Claude Code): 1 part edit that separates coplanar faces; materials, names, hierarchy and animation are unchanged.
// Authored by: gemini-3.8-flash-high, via agy.
//
// Written by the model itself through the Kiln MCP tools: it wrote the
// program, rendered it, looked at its own six-view contact sheet, and
// revised. Not a line of it is hand-authored.
//
// Refined later, in this repository, with `kiln_edit`: the horses were turned
// to face along their track instead of across it.
// The attribution above is for the authoring run, which had none of this in
// scope. Both passes went through the same tools; only the second one could
// see the gallery it was going into.
const meta = { name: 'Carousel', category: 'prop' };
function build() {
const root = createRoot('Carousel');
// =========================================================================
// Materials Palette
// =========================================================================
const gold = gameMaterial(0xdfaf37, { metalness: 0.85, roughness: 0.25 });
const mirror = gameMaterial(0xd8e4ec, { metalness: 0.95, roughness: 0.05 });
const crimson = gameMaterial(0xb81824, { roughness: 0.45 });
const cream = gameMaterial(0xf6eedb, { roughness: 0.55 });
const darkWood = gameMaterial(0x3e2415, { roughness: 0.8 });
const deckPlank = gameMaterial(0x6e4324, { roughness: 0.7 });
const baseMaroon = gameMaterial(0x3a1017, { roughness: 0.85 });
const darkLeather = gameMaterial(0x482818, { roughness: 0.75 });
const darkDetail = gameMaterial(0x221a16, { roughness: 0.9 });
const lightBulb = gameMaterial(0xfff3b0, { emissive: 0xffdf70, emissiveIntensity: 1.5, roughness: 0.3 });
// Blanket accent colors
const blanketSapphire = gameMaterial(0x1d4e89, { roughness: 0.45 });
const blanketEmerald = gameMaterial(0x1e6b45, { roughness: 0.45 });
const blanketPurple = gameMaterial(0x5e2b6d, { roughness: 0.45 });
// Horse coat colors
const coatWhite = gameMaterial(0xf4f1eb, { roughness: 0.6 });
const coatChestnut = gameMaterial(0x7a361c, { roughness: 0.65 });
const coatBlack = gameMaterial(0x282626, { roughness: 0.7 });
const coatPalomino = gameMaterial(0xdca55c, { roughness: 0.65 });
// =========================================================================
// 1. Static Foundation Base (sitting on Y = 0)
// =========================================================================
// Sub-base plinth (Y: 0.00 to 0.08, radius 3.38m)
createPart('BaseRingLower', cylinderGeo(3.38, 3.42, 0.08, 24), baseMaroon, {
position: [0, 0.04, 0],
parent: root,
});
// Stepped surround plinth (Y: 0.08 to 0.16, radius 3.28m)
createPart('BaseRingUpper', cylinderGeo(3.28, 3.32, 0.08, 24), darkWood, {
position: [0, 0.12, 0],
parent: root,
});
// Outer perimeter brass trim
createPart('BaseGoldTrim', torusGeo(3.32, 0.022, 6, 24), gold, {
position: [0, 0.16, 0],
rotation: [90, 0, 0],
parent: root,
});
// =========================================================================
// 2. Main Rotating Assembly (Joint_Carousel)
// =========================================================================
const carousel = createPivot('Carousel', [0, 0, 0], root);
// Rotating Deck platform (Y: 0.16 to 0.32, radius 3.16m)
createPart('DeckPlatform', cylinderGeo(3.16, 3.16, 0.16, 24), deckPlank, {
position: [0, 0.24, 0],
parent: carousel,
});
// Bullnose brass rim around deck edge
createPart('DeckRim', torusGeo(3.17, 0.020, 6, 24), gold, {
position: [0, 0.32, 0],
rotation: [90, 0, 0],
parent: carousel,
});
// Concentric deck plank inlay ring
createPart('DeckInnerRing', torusGeo(2.25, 0.015, 6, 24), darkWood, {
position: [0, 0.325, 0],
rotation: [90, 0, 0],
parent: carousel,
});
// =========================================================================
// 3. Mirrored Centre Drum (Y: 0.32 to 2.65, radius 1.05m)
// =========================================================================
createPart('DrumCore', cylinderGeo(1.02, 1.02, 2.248, 12), darkWood, {
position: [0, 1.484, 0],
parent: carousel,
});
createPart('DrumPlinth', cylinderGeo(1.08, 1.12, 0.40, 12), baseMaroon, {
position: [0, 0.52, 0],
parent: carousel,
});
createPart('DrumPlinthTrim', torusGeo(1.09, 0.02, 6, 24), gold, {
position: [0, 0.72, 0],
rotation: [90, 0, 0],
parent: carousel,
});
const mirrorWidth = 0.46;
const mirrorHeight = 1.45;
const drumR = 1.04;
const geoMirror = boxGeo(mirrorWidth, mirrorHeight, 0.02);
const geoFrameTop = boxGeo(mirrorWidth + 0.06, 0.06, 0.03);
const geoFrameBot = boxGeo(mirrorWidth + 0.06, 0.06, 0.03);
const geoPilaster = cylinderGeo(0.032, 0.032, 1.62, 6);
const geoCap = boxGeo(0.08, 0.05, 0.08);
const geoRosette = cylinderGeo(0.04, 0.04, 0.02, 6);
geoRosette.rotateX(Math.PI / 2);
const geoDrumLight = cylinderGeo(0.026, 0.026, 0.025, 6);
geoDrumLight.rotateX(Math.PI / 2);
for (let i = 0; i < 12; i++) {
const angleDeg = i * 30;
const rad = (angleDeg * Math.PI) / 180;
const facePivot = createPivot('DrumFace' + i, [0, 0, 0], carousel);
facePivot.rotation.y = -rad;
// Mirrored glass panel
createPart('Mirror' + i, geoMirror, mirror, {
position: [0, 1.55, drumR],
parent: facePivot,
});
// Gilded top & bottom frame
createPart('FrameTop' + i, geoFrameTop, gold, {
position: [0, 1.55 + mirrorHeight / 2 + 0.03, drumR + 0.01],
parent: facePivot,
});
createPart('FrameBot' + i, geoFrameBot, gold, {
position: [0, 1.55 - mirrorHeight / 2 - 0.03, drumR + 0.01],
parent: facePivot,
});
// Fluted pilaster column
const colX = mirrorWidth / 2 + 0.04;
createPart('Pilaster' + i, geoPilaster, gold, {
position: [colX, 1.55, drumR + 0.015],
parent: facePivot,
});
createPart('ColCap' + i, geoCap, gold, {
position: [colX, 1.55 + 0.81, drumR + 0.015],
parent: facePivot,
});
createPart('ColBase' + i, geoCap, gold, {
position: [colX, 1.55 - 0.81, drumR + 0.015],
parent: facePivot,
});
// Rosette crest & cabochon carnival light
createPart('Rosette' + i, geoRosette, crimson, {
position: [0, 1.55 + mirrorHeight / 2 + 0.10, drumR + 0.02],
parent: facePivot,
});
createPart('DrumLight' + i, geoDrumLight, lightBulb, {
position: [0, 1.55 + mirrorHeight / 2 + 0.18, drumR + 0.02],
parent: facePivot,
});
}
// Upper drum cornice
createPart('DrumCornice', cylinderGeo(1.15, 1.06, 0.16, 12), baseMaroon, {
position: [0, 2.53, 0],
parent: carousel,
});
createPart('DrumCorniceTrim', torusGeo(1.15, 0.022, 6, 24), gold, {
position: [0, 2.61, 0],
rotation: [90, 0, 0],
parent: carousel,
});
// =========================================================================
// 4. Overhead Structure: Ceiling & Radial Rafters
// =========================================================================
createPart('CeilingPlate', cylinderGeo(3.18, 3.18, 0.08, 24), darkWood, {
position: [0, 2.68, 0],
parent: carousel,
});
const geoRafter = boxGeo(0.08, 0.08, 2.15);
const geoCrankBox = boxGeo(0.18, 0.14, 0.18);
for (let i = 0; i < 8; i++) {
const angleDeg = i * 45;
const rad = (angleDeg * Math.PI) / 180;
const rafterPivot = createPivot('RafterPivot' + i, [0, 0, 0], carousel);
rafterPivot.rotation.y = -rad;
createPart('Rafter' + i, geoRafter, gold, {
position: [0, 2.64, 2.12],
parent: rafterPivot,
});
createPart('CrankBox' + i, geoCrankBox, baseMaroon, {
position: [0, 2.64, 2.25],
parent: rafterPivot,
});
}
// =========================================================================
// 5. Striped Canopy (24 red & cream wedges) & Scalloped Valance
// =========================================================================
function makeWedgeGeo(rBot, rTop, yBot, yTop, dAngleDeg) {
const geo = new THREE.BufferGeometry();
const halfA = ((dAngleDeg * Math.PI) / 180) / 2;
const cosA = Math.cos(halfA);
const sinA = Math.sin(halfA);
const x0 = -rBot * sinA, z0 = rBot * cosA, y0 = yBot;
const x1 = rBot * sinA, z1 = rBot * cosA, y1 = yBot;
const x2 = rTop * sinA, z2 = rTop * cosA, y2 = yTop;
const x3 = -rTop * sinA, z3 = rTop * cosA, y3 = yTop;
const pos = [
x0, y0, z0, x1, y1, z1, x2, y2, z2,
x0, y0, z0, x2, y2, z2, x3, y3, z3,
x0, y0, z0, x2, y2, z2, x1, y1, z1,
x0, y0, z0, x3, y3, z3, x2, y2, z2,
];
geo.setAttribute('position', new THREE.Float32BufferAttribute(pos, 3));
geo.computeVertexNormals();
return geo;
}
const canopyWedgeGeo = makeWedgeGeo(3.25, 0.35, 2.76, 4.38, 15);
const geoValance = boxGeo(0.82, 0.28, 0.03);
const geoValTrim = boxGeo(0.84, 0.04, 0.04);
const geoValCrest = cylinderGeo(0.038, 0.038, 0.02, 6);
geoValCrest.rotateX(Math.PI / 2);
const geoValLight = cylinderGeo(0.024, 0.024, 0.025, 6);
geoValLight.rotateX(Math.PI / 2);
const geoCanopySeam = cylinderGeo(0.014, 0.014, 3.25, 4);
const seamPitch = 27.6;
for (let i = 0; i < 24; i++) {
const angleDeg = i * 15;
const rad = (angleDeg * Math.PI) / 180;
const isEven = i % 2 === 0;
const mat = isEven ? crimson : cream;
// Wedge
const wedge = createPart('CanopyWedge' + i, canopyWedgeGeo, mat, { parent: carousel });
wedge.rotation.y = -rad;
// Valance panel
const valancePivot = createPivot('ValPivot' + i, [0, 0, 0], carousel);
valancePivot.rotation.y = -rad;
createPart('Valance' + i, geoValance, isEven ? crimson : cream, {
position: [0, 2.62, 3.26],
parent: valancePivot,
});
createPart('ValTrim' + i, geoValTrim, gold, {
position: [0, 2.48, 3.26],
parent: valancePivot,
});
createPart('ValCrest' + i, geoValCrest, isEven ? gold : crimson, {
position: [0, 2.62, 3.28],
parent: valancePivot,
});
createPart('ValLight' + i, geoValLight, lightBulb, {
position: [0, 2.50, 3.28],
parent: valancePivot,
});
createPart('CanopySeam' + i, geoCanopySeam, gold, {
position: [0, 3.57, 1.80],
rotation: [-(90 - seamPitch), 0, 0],
parent: valancePivot,
});
}
// =========================================================================
// 6. Canopy Cupola, Spire & Finial (Y: 4.38 to 5.80)
// =========================================================================
createPart('ApexRing', cylinderGeo(0.42, 0.42, 0.12, 16), gold, {
position: [0, 4.42, 0],
parent: carousel,
});
createPart('CupolaDrum', cylinderGeo(0.38, 0.38, 0.35, 12), baseMaroon, {
position: [0, 4.65, 0],
parent: carousel,
});
const geoCupCol = cylinderGeo(0.025, 0.025, 0.35, 6);
for (let j = 0; j < 6; j++) {
const cupA = (j * 60 * Math.PI) / 180;
createPart('CupCol' + j, geoCupCol, gold, {
position: [0.38 * Math.sin(cupA), 4.65, 0.38 * Math.cos(cupA)],
parent: carousel,
});
}
// Safe spire cone with non-zero top radius
createPart('SpireCone', cylinderGeo(0.015, 0.44, 0.65, 16), gold, {
position: [0, 5.15, 0],
parent: carousel,
});
createPart('FinialOrb', cylinderGeo(0.06, 0.08, 0.14, 8), gold, {
position: [0, 5.54, 0],
parent: carousel,
});
createPart('FinialSpike', cylinderGeo(0.008, 0.018, 0.32, 6), gold, {
position: [0, 5.72, 0],
parent: carousel,
});
createPart('PennantFlag', boxGeo(0.32, 0.16, 0.015), crimson, {
position: [0.18, 5.76, 0],
parent: carousel,
});
// =========================================================================
// 7. 8 Animated Horses & Brass Poles
// =========================================================================
// Reusable horse geometry set
const geoTorso = cylinderXGeo(0.18, 0.19, 0.44, 8);
const geoChest = cylinderXGeo(0.19, 0.13, 0.16, 8);
const geoRump = cylinderXGeo(0.13, 0.18, 0.16, 8);
const geoNeck = cylinderGeo(0.10, 0.15, 0.42, 8);
const geoMane1 = boxGeo(0.08, 0.18, 0.05);
const geoMane2 = boxGeo(0.08, 0.18, 0.05);
const geoMane3 = boxGeo(0.07, 0.14, 0.05);
const geoHead = boxGeo(0.16, 0.15, 0.15);
const geoMuzzle = cylinderXGeo(0.06, 0.08, 0.18, 8);
const geoNose = boxGeo(0.06, 0.07, 0.10);
// Non-degenerate ear cylinder
const geoEar = cylinderGeo(0.005, 0.028, 0.09, 6);
const geoEye = boxGeo(0.03, 0.03, 0.02);
const geoBlanket = boxGeo(0.40, 0.22, 0.42);
const geoBlanketTrim = boxGeo(0.42, 0.03, 0.44);
const geoSaddle = boxGeo(0.25, 0.06, 0.25);
const geoPommel = boxGeo(0.06, 0.09, 0.16);
const geoCantle = boxGeo(0.06, 0.11, 0.18);
const geoStirrup = boxGeo(0.03, 0.08, 0.08);
const geoBreastplate = boxGeo(0.18, 0.04, 0.32);
const geoMedallion = cylinderGeo(0.035, 0.035, 0.02, 6);
geoMedallion.rotateZ(Math.PI / 2);
const geoLegUpper = cylinderGeo(0.04, 0.032, 0.22, 6);
const geoLegLower = cylinderGeo(0.032, 0.026, 0.20, 6);
const geoJoint = cylinderGeo(0.036, 0.036, 0.05, 6);
const geoHoof = cylinderGeo(0.028, 0.036, 0.06, 6);
const geoHaunch = cylinderGeo(0.07, 0.09, 0.18, 6);
const geoThigh = cylinderGeo(0.055, 0.04, 0.24, 6);
const geoTail1 = cylinderGeo(0.04, 0.03, 0.22, 6);
const geoTail2 = cylinderGeo(0.035, 0.025, 0.24, 6);
const geoTail3 = cylinderGeo(0.03, 0.015, 0.20, 6);
const geoPole = cylinderGeo(0.024, 0.024, 2.38, 6);
const geoPoleRing = torusGeo(0.038, 0.012, 6, 12);
const geoPoleFinial = cylinderGeo(0.02, 0.045, 0.08, 6);
const horseRingR = 2.25;
const horseConfigs = [
{ coat: coatWhite, blanket: crimson, mane: darkDetail },
{ coat: coatChestnut, blanket: blanketSapphire, mane: coatWhite },
{ coat: coatBlack, blanket: blanketEmerald, mane: coatBlack },
{ coat: coatPalomino, blanket: blanketPurple, mane: coatWhite },
{ coat: coatWhite, blanket: blanketSapphire, mane: darkDetail },
{ coat: coatChestnut, blanket: crimson, mane: coatWhite },
{ coat: coatBlack, blanket: blanketPurple, mane: coatBlack },
{ coat: coatPalomino, blanket: blanketEmerald, mane: coatWhite },
];
for (let i = 0; i < 8; i++) {
const angleDeg = i * 45;
const rad = (angleDeg * Math.PI) / 180;
const cfg = horseConfigs[i];
const mount = createPivot('Mount' + i, [
horseRingR * Math.sin(rad),
0,
horseRingR * Math.cos(rad),
], carousel);
// Face each horse along the track, not across it. The horse is modelled
// nose-at-+X, and a Y rotation of `a` carries +X to (cos a, 0, -sin a) --
// which is exactly the tangent at (R sin a, 0, R cos a). Adding a quarter
// turn on top of that pointed every nose at the centre pole instead.
mount.rotation.y = rad;
// Fixed Brass Pole
createPart('Pole' + i, geoPole, gold, {
position: [0, 1.51, 0],
parent: mount,
});
createPart('PoleBase' + i, geoPoleRing, gold, {
position: [0, 0.33, 0],
rotation: [90, 0, 0],
parent: mount,
});
createPart('PoleTop' + i, geoPoleRing, gold, {
position: [0, 2.67, 0],
rotation: [90, 0, 0],
parent: mount,
});
createPart('PoleBall' + i, geoPoleFinial, gold, {
position: [0, 2.64, 0],
parent: mount,
});
// Moving Horse Joint
const baseY = 1.20;
const horseJoint = createPivot('Horse' + i, [0, baseY, 0], mount);
// Torso & Body
createPart('Torso' + i, geoTorso, cfg.coat, { parent: horseJoint });
createPart('Chest' + i, geoChest, cfg.coat, { position: [0.24, 0.02, 0], parent: horseJoint });
createPart('Rump' + i, geoRump, cfg.coat, { position: [-0.24, 0.02, 0], parent: horseJoint });
// Neck & Mane
createPart('Neck' + i, geoNeck, cfg.coat, {
position: [0.30, 0.22, 0],
rotation: [0, 0, -38],
parent: horseJoint,
});
createPart('ManeA' + i, geoMane1, cfg.mane, { position: [0.22, 0.28, 0], rotation: [0, 0, -35], parent: horseJoint });
createPart('ManeB' + i, geoMane2, cfg.mane, { position: [0.30, 0.38, 0], rotation: [0, 0, -35], parent: horseJoint });
createPart('ManeC' + i, geoMane3, cfg.mane, { position: [0.37, 0.48, 0], rotation: [0, 0, -30], parent: horseJoint });
// Head
createPart('Head' + i, geoHead, cfg.coat, { position: [0.44, 0.45, 0], parent: horseJoint });
createPart('Muzzle' + i, geoMuzzle, cfg.coat, { position: [0.55, 0.41, 0], parent: horseJoint });
createPart('Nose' + i, geoNose, darkDetail, { position: [0.64, 0.41, 0], parent: horseJoint });
createPart('EarL' + i, geoEar, cfg.coat, { position: [0.41, 0.55, 0.055], rotation: [10, -5, -15], parent: horseJoint });
createPart('EarR' + i, geoEar, cfg.coat, { position: [0.41, 0.55, -0.055], rotation: [-10, 5, -15], parent: horseJoint });
createPart('EyeL' + i, geoEye, gold, { position: [0.47, 0.47, 0.085], parent: horseJoint });
createPart('EyeR' + i, geoEye, gold, { position: [0.47, 0.47, -0.085], parent: horseJoint });
// Saddle & Trappings
createPart('Blanket' + i, geoBlanket, cfg.blanket, { position: [0, 0.02, 0], parent: horseJoint });
createPart('BlanketTrim' + i, geoBlanketTrim, gold, { position: [0, -0.08, 0], parent: horseJoint });
createPart('Saddle' + i, geoSaddle, darkLeather, { position: [0, 0.15, 0], parent: horseJoint });
createPart('Pommel' + i, geoPommel, gold, { position: [0.10, 0.18, 0], parent: horseJoint });
createPart('Cantle' + i, geoCantle, gold, { position: [-0.10, 0.19, 0], parent: horseJoint });
createPart('StirrupL' + i, geoStirrup, gold, { position: [0, -0.16, 0.21], parent: horseJoint });
createPart('StirrupR' + i, geoStirrup, gold, { position: [0, -0.16, -0.21], parent: horseJoint });
createPart('Breastplate' + i, geoBreastplate, gold, { position: [0.25, 0.05, 0], parent: horseJoint });
createPart('Medallion' + i, geoMedallion, crimson, { position: [0.35, 0.05, 0], parent: horseJoint });
// Front Legs
createPart('FL_Up' + i, geoLegUpper, cfg.coat, {
position: [0.22, -0.12, 0.11],
rotation: [-5, 0, -35],
parent: horseJoint,
});
createPart('FL_Kn' + i, geoJoint, cfg.coat, { position: [0.28, -0.22, 0.11], parent: horseJoint });
createPart('FL_Lo' + i, geoLegLower, cfg.coat, {
position: [0.22, -0.31, 0.11],
rotation: [0, 0, 30],
parent: horseJoint,
});
createPart('FL_Hf' + i, geoHoof, gold, { position: [0.17, -0.40, 0.11], parent: horseJoint });
createPart('FR_Up' + i, geoLegUpper, cfg.coat, {
position: [0.22, -0.13, -0.11],
rotation: [5, 0, -25],
parent: horseJoint,
});
createPart('FR_Kn' + i, geoJoint, cfg.coat, { position: [0.27, -0.24, -0.11], parent: horseJoint });
createPart('FR_Lo' + i, geoLegLower, cfg.coat, {
position: [0.32, -0.34, -0.11],
rotation: [0, 0, -20],
parent: horseJoint,
});
createPart('FR_Hf' + i, geoHoof, gold, { position: [0.36, -0.44, -0.11], parent: horseJoint });
// Hind Legs
createPart('HL_Hn' + i, geoHaunch, cfg.coat, { position: [-0.22, -0.04, 0.12], parent: horseJoint });
createPart('HL_Th' + i, geoThigh, cfg.coat, {
position: [-0.28, -0.15, 0.12],
rotation: [-5, 0, 30],
parent: horseJoint,
});
createPart('HL_Hk' + i, geoJoint, cfg.coat, { position: [-0.34, -0.26, 0.12], parent: horseJoint });
createPart('HL_Lo' + i, geoLegLower, cfg.coat, {
position: [-0.31, -0.36, 0.12],
rotation: [0, 0, -15],
parent: horseJoint,
});
createPart('HL_Hf' + i, geoHoof, gold, { position: [-0.28, -0.45, 0.12], parent: horseJoint });
createPart('HR_Hn' + i, geoHaunch, cfg.coat, { position: [-0.22, -0.04, -0.12], parent: horseJoint });
createPart('HR_Th' + i, geoThigh, cfg.coat, {
position: [-0.30, -0.16, -0.12],
rotation: [5, 0, 40],
parent: horseJoint,
});
createPart('HR_Hk' + i, geoJoint, cfg.coat, { position: [-0.38, -0.27, -0.12], parent: horseJoint });
createPart('HR_Lo' + i, geoLegLower, cfg.coat, {
position: [-0.44, -0.37, -0.12],
rotation: [0, 0, 25],
parent: horseJoint,
});
createPart('HR_Hf' + i, geoHoof, gold, { position: [-0.49, -0.47, -0.12], parent: horseJoint });
// Tail
createPart('TailA' + i, geoTail1, cfg.mane, {
position: [-0.34, 0.04, 0],
rotation: [0, 0, 45],
parent: horseJoint,
});
createPart('TailB' + i, geoTail2, cfg.mane, {
position: [-0.44, -0.08, 0],
rotation: [0, 0, 20],
parent: horseJoint,
});
createPart('TailC' + i, geoTail3, cfg.mane, {
position: [-0.49, -0.22, 0],
rotation: [0, 0, -10],
parent: horseJoint,
});
}
return root;
}
function animate() {
const duration = 4;
const tracks = [];
// Full 360-degree rotation of the carousel assembly
const carouselRotations = [];
for (let step = 0; step <= 4; step++) {
const angle = (step * 90) % 360;
carouselRotations.push({
time: (step * duration) / 4,
rotation: [0, angle, 0],
});
}
tracks.push(rotationTrack('Joint_Carousel', carouselRotations));
// Sinusoidal rise-and-fall for each of the 8 horses
const baseY = 1.20;
const bobAmp = 0.16;
const sampleCount = 8;
for (let i = 0; i < 8; i++) {
const phase = (i * Math.PI) / 2;
const horsePositions = [];
for (let s = 0; s <= sampleCount; s++) {
const t = (s * duration) / sampleCount;
const y = baseY + bobAmp * Math.sin(2 * Math.PI * (t / 2) + phase);
horsePositions.push({
time: t,
position: [0, y, 0],
});
}
tracks.push(positionTrack('Joint_Horse' + i, horsePositions));
}
return [createClip('ride', duration, tracks)];
}Scroll code horizontally
Brief and retained revisions
No brief or earlier revisions are recorded. The source download contains the version built for this page.
