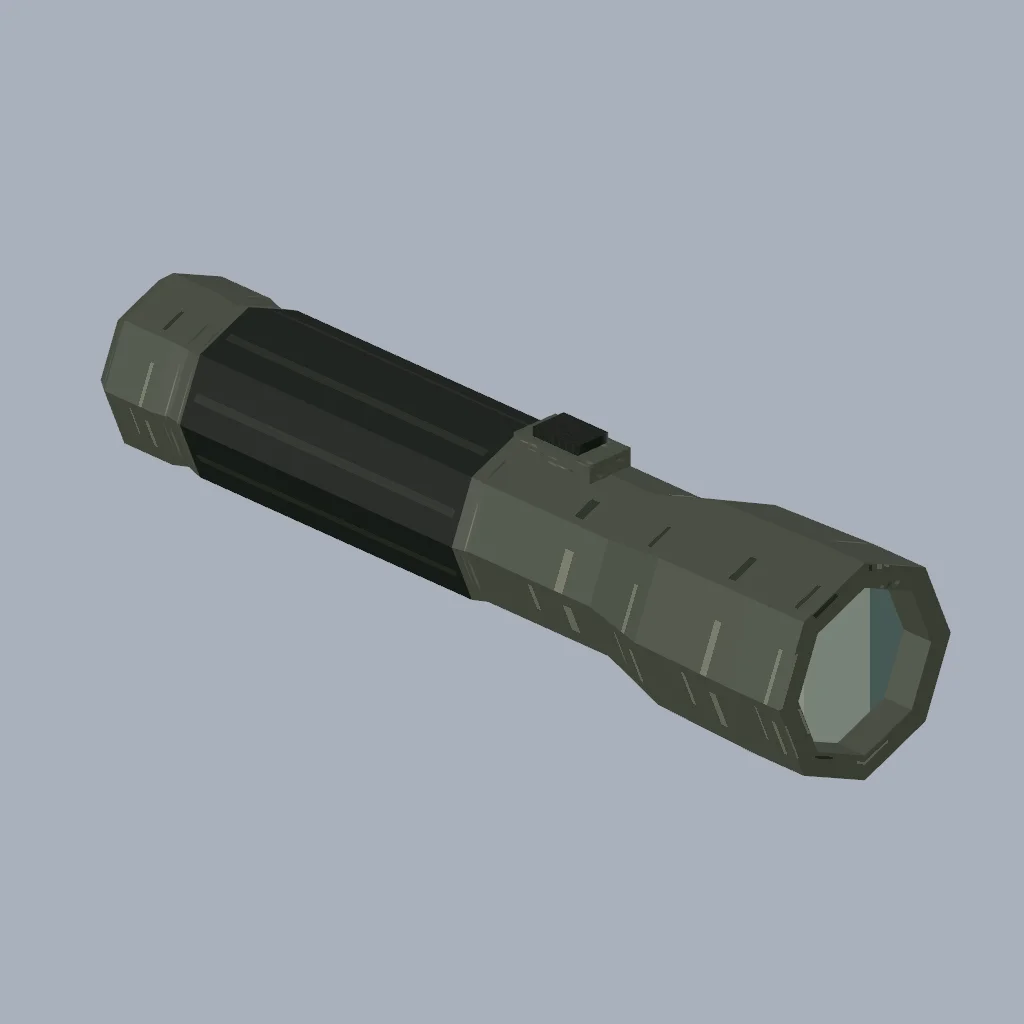

Handheld flashlight

const BODY={"schemaVersion": 3, "model": "pbrMetallicRoughness", "name": "Worn handheld flashlight olive metal and rubber", "roughness": 0.78, "metalness": 0.16, "emissiveIntensity": 1, "alphaMode": "opaque", "alphaCutoff": 0.5, "doubleSided": false, "textures": {"baseColor": {"kind": "resource", "resourceId": "kiln.library.9a45e6f3ebb2e469e919aca3df78e60c6ea6ddbe9809907b0889c63eae05a167.base-color", "sampler": {"minFilter": "nearest", "magFilter": "nearest", "wrapS": "clamp-to-edge", "wrapT": "clamp-to-edge"}}}};
const GLASS={"schemaVersion": 3, "model": "pbrMetallicRoughness", "name": "Recessed flashlight glass", "roughness": 0.22, "metalness": 0, "emissiveIntensity": 1, "alphaMode": "opaque", "alphaCutoff": 0.5, "doubleSided": false, "textures": {"baseColor": {"kind": "resource", "resourceId": "kiln.library.9a45e6f3ebb2e469e919aca3df78e60c6ea6ddbe9809907b0889c63eae05a167.base-color", "sampler": {"minFilter": "nearest", "magFilter": "nearest", "wrapS": "clamp-to-edge", "wrapT": "clamp-to-edge"}}}};
const meta={name:'Handheld flashlight',role:'prop'};
// Compact faceted rural torch. +X is the physical lens normal/beam direction.
const PROFILE=[[-.078,.017],[-.074,.020],[-.060,.020],[-.056,.019],[-.052,.020],[.027,.020],[.031,.019],[.066,.019],[.084,.024],[.112,.025],[.127,.025]];
function buffer(){return {p:[],uv:[]};}
function tri(o,p,uv){for(let k=0;k<3;k++){o.p.push(...p[k]);o.uv.push(...uv[k]);}}
function quad(o,p,uv){tri(o,[p[0],p[1],p[2]],[uv[0],uv[1],uv[2]]);tri(o,[p[0],p[2],p[3]],[uv[0],uv[2],uv[3]]);}
function ring(x,r){return Array.from({length:8},(_,k)=>{const a=k*2*Math.PI/8;return[x,Math.cos(a)*r,Math.sin(a)*r];});}
function cap(o,x,r,reverse=false,region=[.52,.98]){const q=ring(x,r);for(let k=1;k<7;k++){const ids=reverse?[0,k+1,k]:[0,k,k+1];tri(o,ids.map(i=>q[i]),ids.map(i=>[.5+.45*Math.cos(i*2*Math.PI/8),region[0]+(region[1]-region[0])*(.5+.45*Math.sin(i*2*Math.PI/8))]));}}
function casing(o){const rings=PROFILE.map(([x,r])=>ring(x,r));for(let k=0;k<rings.length-1;k++)for(let i=0;i<8;i++){const q=(i+1)%8,grip=PROFILE[k][0]>=-.052&&PROFILE[k+1][0]<=.027,lo=grip?.26:.52,hi=grip?.49:.98;quad(o,[rings[k][i],rings[k][q],rings[k+1][q],rings[k+1][i]],[[i/8,lo],[(i+1)/8,lo],[(i+1)/8,hi],[i/8,hi]]);}cap(o,-.078,.017,true);
 const outer=ring(.127,.025),inner=ring(.127,.0193),back=ring(.117,.0193);for(let k=0;k<8;k++){const q=(k+1)%8;quad(o,[outer[k],outer[q],inner[q],inner[k]],[[k/8,.87],[q/8,.87],[q/8,.73],[k/8,.73]]);quad(o,[inner[k],inner[q],back[q],back[k]],[[k/8,.55],[q/8,.55],[q/8,.60],[k/8,.60]]);}
}
function box(o,min,max,region){const v=[];for(let x of [min[0],max[0]])for(let y of [min[1],max[1]])for(let z of [min[2],max[2]])v.push([x,y,z]);for(const f of [[0,1,3,2],[4,6,7,5],[0,4,5,1],[2,3,7,6],[0,2,6,4],[1,5,7,3]])quad(o,f.map(k=>v[k]),[[.1,region[0]],[.9,region[0]],[.9,region[1]],[.1,region[1]]]);}
function mesh(o,name,material,root){const g=new THREE.BufferGeometry();g.setAttribute('position',new THREE.Float32BufferAttribute(o.p,3));g.setAttribute('uv',new THREE.Float32BufferAttribute(o.uv.map((v,i)=>i%2?1-v:v),2));g.computeVertexNormals();const m=new THREE.Mesh(g,material);m.name=name;root.add(m);return m;}
function socket(root,name,pos){const s=new THREE.Object3D();s.name=name;s.position.set(...pos);root.add(s);return s;}
async function build(){const root=createRoot('HandheldFlashlight'),metal=await compilePortableMaterialSpecV3(BODY),glass=await compilePortableMaterialSpecV3(GLASS),body=buffer(),lens=buffer();casing(body);box(body,[.031,.0188,-.006],[.053,.023,.006],[.52,.98]);box(body,[.035,.023,-.0045],[.048,.0253,.0045],[.26,.49]);cap(lens,.119,.0194,false,[.02,.23]);cap(lens,.117,.0194,true,[.02,.23]);const a=ring(.117,.0194),b=ring(.119,.0194);for(let i=0;i<8;i++){const q=(i+1)%8;quad(lens,[a[i],a[q],b[q],b[i]],[[.05,.02],[.95,.02],[.95,.23],[.05,.23]]);}const shell=mesh(body,'Flashlight_CasingGripToggle',metal,root);markOpenShell(shell,'Intentional lens-seat opening closed visually by the separate recessed lens; hollow bezel is not a single closed manufacturing solid.');mesh(lens,'Flashlight_RecessedLens',glass,root);socket(root,'grip_left',[0,0,0]);socket(root,'lens',[.119,0,0]);socket(root,'beam_origin',[.129,0,0]);root.userData.flashlight={version:1,axes:'+X lens/beam, +Y up, +Z right',grip:'grip_left',frontLens:'lens',beamOrigin:'beam_origin',gripBandRangeX:[-.052,.027],lensSurfaceX:.119,bezelFrontX:.127,pivot:'hand attachment; not grounded',runtimeOnly:'Light visibility and illumination are controlled by scene code; no baked light.'};return root;}
