Walking beam and crank-driven linkage

Earlier examples from earlier Kiln versions.

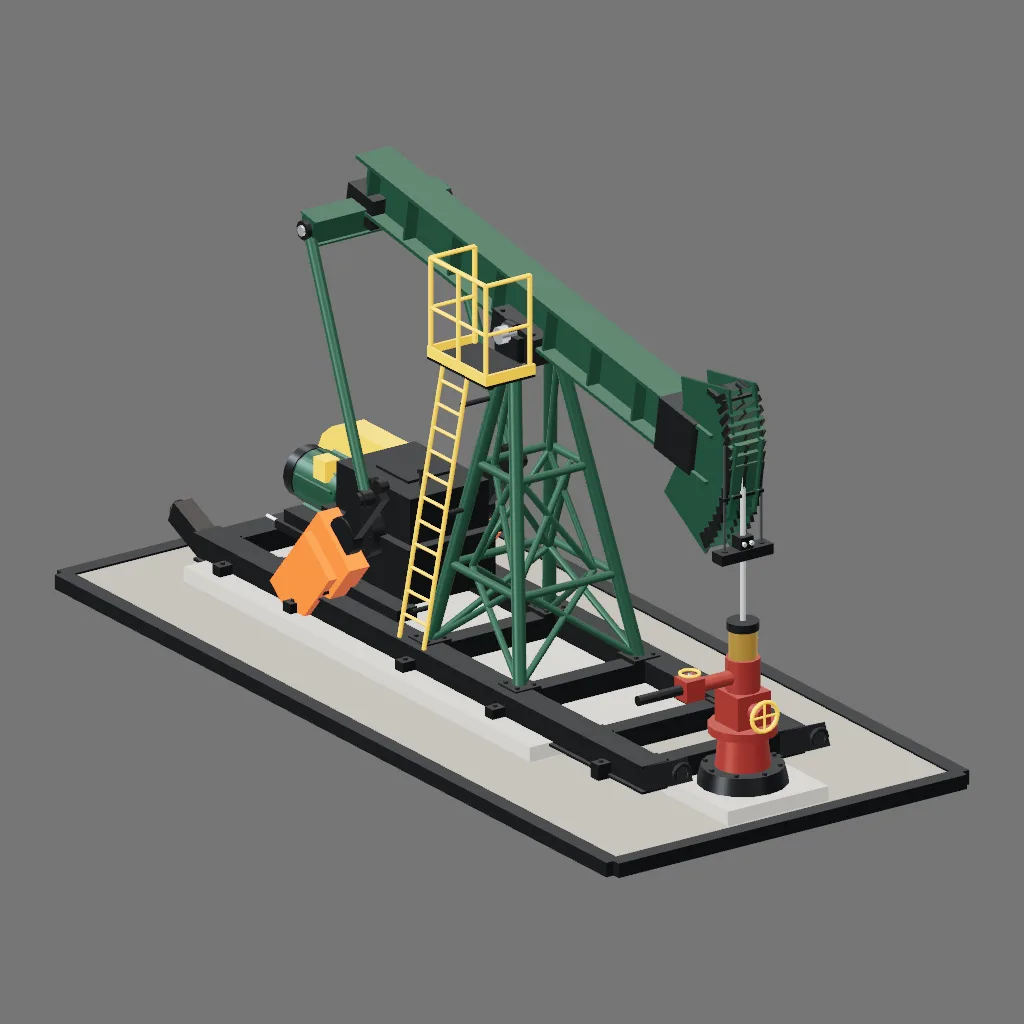

Historical gallery render of Pumpjack; see the poster provenance below.

Drag to orbit after opening. The model starts stationary.

For your engine. The download is a standard glTF 2.0 binary (GLB) with PBR metallic-roughness materials. glTF stores materials, not lighting or tone mapping, so your engine decides how they read. This 3D view tone-maps with Review Neutral, the Khronos PBR Neutral construction with a smaller glare offset (0.015 instead of 0.04), at exposure 0.9. Its Tone mapping control also shows ACES and Linear, for comparison.

Build measurements

Triangles
10,236
Estimated draws
390
Materials
10
Textures
0
Animation clips
0
Bounds X × Y × Z
8.76 × 4.46 × 3.96 m
Build warnings
0

Measurements come from this build.

Download this build

Runtime: 233,904 bytes. Original: 233,680 bytes.

These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.

Runtime provenance metadata
SHA-256 download hashes
Runtime GLB
dafb1788ef03c6e1e9e21d5299a7bd99fedf65eabb3df9d4c88ca1de127db428
Original GLB
27d855df318c5a0717ac9977e1163e6765db7931f36870893c726f39dd8bdb07
Source
4dd47e0e8a5f58cbbe4e1641ff872e1b9264b45e5426a13af86c66bbcc90a9d1

The example source is part of the Kiln repository. Repository licence: MIT.

These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.

Recorded authorship

Gemini 3.8 Flash through Antigravity CLI (agy)

Source-header credit

Source access
Source header declares no repository implementation or finished examples supplied
Inherited context
Not independently recorded; source-header declarations only
Starting example
None supplied, according to source header
Human input
Header declares no hand-authored source; other intervention not recorded
Authoring review
Six-view review declared; renderer fidelity not recorded

Picture rendered from an earlier revision of this source.

The source behind this build

pumpjack.kiln.js
// Maintainer revision: flush-face fix (2026-11-12, Claude Sonnet 5.5 via Claude Code): 7 part edits that separate coplanar faces; materials, names, hierarchy and animation are unchanged.
// Authored by: gemini-3.8-flash-high, via agy.
//
// Written by the model itself through the Kiln MCP tools: it wrote the
// program, rendered it, looked at its own six-view contact sheet, and
// revised. Not a line of it is hand-authored.
//
// Dispatched into a clean directory containing only the brief and the Kiln
// skills, with no access to this repository or to any finished example.

const meta = { name: 'Pumpjack', category: 'prop' };

async function build() {
  const root = createRoot('Pumpjack');

  // ==========================================
  // MATERIALS (Authentic industrial oilfield palette)
  // ==========================================
  // Industrial pumpjack painted steel (classic oilfield dark spruce green)
  const matBeamSteel = gameMaterial(0x244636, { metalness: 0.55, roughness: 0.45 });
  // Heavy structural dark steel (skid runners, brackets, gearbox casing)
  const matDarkSteel = gameMaterial(0x222527, { metalness: 0.7, roughness: 0.4 });
  // High-visibility safety orange (counterweights, moving hazard warnings)
  const matHazardOrange = gameMaterial(0xd35b1d, { metalness: 0.35, roughness: 0.45 });
  // Safety yellow (ladder, handrails, belt guard, handwheels)
  const matSafetyYellow = gameMaterial(0xdaa224, { metalness: 0.25, roughness: 0.4 });
  // Polished chrome / stainless steel (polished rod, wrist/crank pins, valve stems)
  const matPolishedSteel = gameMaterial(0xe2e4e8, { metalness: 0.95, roughness: 0.12 });
  // Multi-strand wire rope / steel cables
  const matWireCable = gameMaterial(0x404346, { metalness: 0.7, roughness: 0.45 });
  // Wellhead red oxide primer (casing head, valves, flow tee)
  const matWellhead = gameMaterial(0x782c24, { metalness: 0.4, roughness: 0.5 });
  // Reinforced concrete footings
  const matConcrete = gameMaterial(0x86847e, { metalness: 0.08, roughness: 0.92 });
  // Crushed gravel foundation pad
  const matGravel = gameMaterial(0x6e6a62, { metalness: 0.05, roughness: 0.98 });
  // Cast iron (rough gearbox hubs, motor mounts)
  const matCastIron = gameMaterial(0x2f3235, { metalness: 0.5, roughness: 0.65 });
  // Brass / bronze (stuffing box gland, pressure gauge)
  const matBrass = gameMaterial(0xb58f44, { metalness: 0.8, roughness: 0.3 });

  // Shared bolt and rivet geometries
  const boltHexY = cylinderYGeo(0.024, 0.024, 0.035, 6);
  const boltHexX = cylinderXGeo(0.022, 0.022, 0.035, 6);
  const boltHexZ = cylinderZGeo(0.022, 0.022, 0.035, 6);

  // ==========================================
  // 1. GRAVEL PAD & CONCRETE FOUNDATION PIERS
  // ==========================================
  // Main gravel bed (ground rests at Y=0)
  createPart('GravelPad', boxGeo(8.6, 0.12, 3.8), matGravel, {
    position: [-0.3, 0.06, 0],
    parent: root,
  });

  // Perimeter retaining timbers
  createPart('BorderTimber_Front', boxGeo(0.16, 0.14, 3.804), matDarkSteel, {
    position: [4.0, 0.07, 0],
    parent: root,
  });
  createPart('BorderTimber_Back', boxGeo(0.16, 0.14, 3.804), matDarkSteel, {
    position: [-4.6, 0.07, 0],
    parent: root,
  });
  createPart('BorderTimber_Left', boxGeo(8.604, 0.14, 0.16), matDarkSteel, {
    position: [-0.3, 0.07, -1.9],
    parent: root,
  });
  createPart('BorderTimber_Right', boxGeo(8.604, 0.14, 0.16), matDarkSteel, {
    position: [-0.3, 0.07, 1.9],
    parent: root,
  });

  // Concrete foundation blocks resting on gravel
  createPart('ConcreteFooting_Front', boxGeo(1.6, 0.14, 2.2), matConcrete, {
    position: [0.75, 0.19, 0],
    parent: root,
  });
  createPart('ConcreteFooting_Mid', boxGeo(1.4, 0.14, 2.2), matConcrete, {
    position: [-0.65, 0.19, 0],
    parent: root,
  });
  createPart('ConcreteFooting_Rear', boxGeo(2.6, 0.14, 2.2), matConcrete, {
    position: [-2.55, 0.19, 0],
    parent: root,
  });
  createPart('ConcreteFooting_Wellhead', boxGeo(1.1, 0.14, 1.1), matConcrete, {
    position: [3.3, 0.19, 0],
    parent: root,
  });

  // ==========================================
  // 2. HEAVY STEEL SKID FRAME (OILFIELD RUNNERS)
  // ==========================================
  const skidY = 0.36;
  const skidHeight = 0.22;
  const skidWidth = 0.2;
  const skidLength = 7.0;

  for (const zSide of [-0.75, 0.75]) {
    const sideName = zSide < 0 ? 'L' : 'R';
    createPart(`SkidRunner_${sideName}`, boxGeo(skidLength, skidHeight, skidWidth), matDarkSteel, {
      position: [-0.5, skidY, zSide],
      parent: root,
    });
    createPart(`SkidRunner_TFlange_${sideName}`, boxGeo(skidLength, 0.021, skidWidth + 0.08), matDarkSteel, {
      position: [-0.5, skidY + skidHeight / 2 + 0.010, zSide],
      parent: root,
    });
    createPart(`SkidRunner_BFlange_${sideName}`, boxGeo(skidLength, 0.025, skidWidth + 0.08), matDarkSteel, {
      position: [-0.5, skidY - skidHeight / 2 - 0.012, zSide],
      parent: root,
    });

    // Angled sled noses (turned up for truck winching)
    createPart(`SkidNose_F_${sideName}`, boxGeo(0.5, skidHeight, skidWidth), matDarkSteel, {
      position: [3.18, skidY + 0.09, zSide],
      rotation: [0, 0, 24],
      parent: root,
    });
    createPart(`SkidNose_R_${sideName}`, boxGeo(0.5, skidHeight, skidWidth), matDarkSteel, {
      position: [-4.18, skidY + 0.09, zSide],
      rotation: [0, 0, -24],
      parent: root,
    });

    // Towing eyes / lifting shackle lugs
    createPart(`TowEye_F_${sideName}`, torusGeo(0.08, 0.022, 8, 14), matDarkSteel, {
      position: [3.42, skidY + 0.18, zSide],
      rotation: [0, 90, 0],
      parent: root,
    });
    createPart(`TowEye_R_${sideName}`, torusGeo(0.08, 0.022, 8, 14), matDarkSteel, {
      position: [-4.42, skidY + 0.18, zSide],
      rotation: [0, 90, 0],
      parent: root,
    });
  }

  // Cross-members connecting runners
  const crossXPositions = [-3.8, -3.0, -2.0, -0.65, 0.75, 2.0, 2.85];
  for (let i = 0; i < crossXPositions.length; i++) {
    const cx = crossXPositions[i];
    createPart(`SkidCross_${i}`, boxGeo(0.2, 0.2, 1.3), matDarkSteel, {
      position: [cx, skidY, 0],
      parent: root,
    });
    createPart(`SkidGusset_${i}_L`, boxGeo(0.18, 0.02, 0.18), matDarkSteel, {
      position: [cx, skidY + 0.11, -0.65],
      parent: root,
    });
    createPart(`SkidGusset_${i}_R`, boxGeo(0.18, 0.02, 0.18), matDarkSteel, {
      position: [cx, skidY + 0.11, 0.65],
      parent: root,
    });
  }

  // Anchor hold-down clamps bolting skid to concrete piers
  const clampXPositions = [-3.5, -2.4, -0.65, 0.75, 2.4];
  for (let i = 0; i < clampXPositions.length; i++) {
    const clx = clampXPositions[i];
    for (const zSide of [-0.92, 0.92]) {
      createPart(`SkidClamp_${i}_${zSide > 0 ? 'R' : 'L'}`, boxGeo(0.12, 0.15, 0.14), matDarkSteel, {
        position: [clx, 0.28, zSide],
        parent: root,
      });
      createPart(`SkidBolt_${i}_${zSide > 0 ? 'R' : 'L'}`, boltHexY, matDarkSteel, {
        position: [clx, 0.36, zSide],
        parent: root,
      });
    }
  }

  // ==========================================
  // 3. SAMSON POST (4-LEG PYRAMID TRUSS TOWER)
  // ==========================================
  const samsonTopY = 3.3;
  const postShoeY = skidY + 0.12;

  const legCoords = [
    { name: 'FL', base: [0.75, postShoeY, -0.65], top: [0.08, samsonTopY, -0.24] },
    { name: 'FR', base: [0.75, postShoeY, 0.65], top: [0.08, samsonTopY, 0.24] },
    { name: 'BL', base: [-0.65, postShoeY, -0.65], top: [-0.04, samsonTopY, -0.24] },
    { name: 'BR', base: [-0.65, postShoeY, 0.65], top: [-0.04, samsonTopY, 0.24] },
  ];

  for (const leg of legCoords) {
    createPart(`LegShoe_${leg.name}`, boxGeo(0.28, 0.04, 0.28), matDarkSteel, {
      position: [leg.base[0], leg.base[1] + 0.01, leg.base[2]],
      parent: root,
    });
    for (const dx of [-0.09, 0.09]) {
      for (const dz of [-0.09, 0.09]) {
        createPart(`LegShoeBolt_${leg.name}_${dx}_${dz}`, boltHexY, matDarkSteel, {
          position: [leg.base[0] + dx, leg.base[1] + 0.035, leg.base[2] + dz],
          parent: root,
        });
      }
    }
    beamBetween(`LegColumn_${leg.name}`, leg.base, leg.top, 0.065, matBeamSteel, { parent: root });
  }

  // Horizontal perimeter ring struts
  const strutTiers = [
    { y: 1.25, name: 'Tier1' },
    { y: 2.25, name: 'Tier2' },
  ];

  for (const tier of strutTiers) {
    const t = (tier.y - postShoeY) / (samsonTopY - postShoeY);
    const flX = 0.75 + t * (0.08 - 0.75);
    const flZ = -0.65 + t * (-0.24 - -0.65);
    const frX = 0.75 + t * (0.08 - 0.75);
    const frZ = 0.65 + t * (0.24 - 0.65);
    const blX = -0.65 + t * (-0.04 - -0.65);
    const blZ = -0.65 + t * (-0.24 - -0.65);
    const brX = -0.65 + t * (-0.04 - -0.65);
    const brZ = 0.65 + t * (0.24 - 0.65);

    beamBetween(`Strut_F_${tier.name}`, [flX, tier.y, flZ], [frX, tier.y, frZ], 0.04, matBeamSteel, { parent: root });
    beamBetween(`Strut_B_${tier.name}`, [blX, tier.y, blZ], [brX, tier.y, brZ], 0.04, matBeamSteel, { parent: root });
    beamBetween(`Strut_L_${tier.name}`, [blX, tier.y, blZ], [flX, tier.y, flZ], 0.04, matBeamSteel, { parent: root });
    beamBetween(`Strut_R_${tier.name}`, [brX, tier.y, brZ], [frX, tier.y, frZ], 0.04, matBeamSteel, { parent: root });
  }

  // Cross diagonal lattice bracing on all 4 faces
  beamBetween('Diag_L1_A', [-0.65, postShoeY, -0.65], [0.38, 1.25, -0.42], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_L1_B', [0.75, postShoeY, -0.65], [-0.32, 1.25, -0.42], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_L2_A', [-0.32, 1.25, -0.42], [0.18, 2.25, -0.3], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_L2_B', [0.38, 1.25, -0.42], [-0.15, 2.25, -0.3], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_L3', [-0.15, 2.25, -0.3], [0.08, samsonTopY, -0.24], 0.032, matBeamSteel, { parent: root });

  beamBetween('Diag_R1_A', [-0.65, postShoeY, 0.65], [0.38, 1.25, 0.42], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_R1_B', [0.75, postShoeY, 0.65], [-0.32, 1.25, 0.42], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_R2_A', [-0.32, 1.25, 0.42], [0.18, 2.25, 0.3], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_R2_B', [0.38, 1.25, 0.42], [-0.15, 2.25, 0.3], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_R3', [-0.15, 2.25, 0.3], [0.08, samsonTopY, 0.24], 0.032, matBeamSteel, { parent: root });

  beamBetween('Diag_F1_A', [0.75, postShoeY, -0.65], [0.38, 1.25, 0.42], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_F1_B', [0.75, postShoeY, 0.65], [0.38, 1.25, -0.42], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_F2_A', [0.38, 1.25, -0.42], [0.18, 2.25, 0.3], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_F2_B', [0.38, 1.25, 0.42], [0.18, 2.25, -0.3], 0.032, matBeamSteel, { parent: root });

  beamBetween('Diag_B1_A', [-0.65, postShoeY, -0.65], [-0.32, 1.25, 0.42], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_B1_B', [-0.65, postShoeY, 0.65], [-0.32, 1.25, -0.42], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_B2_A', [-0.32, 1.25, -0.42], [-0.15, 2.25, 0.3], 0.032, matBeamSteel, { parent: root });
  beamBetween('Diag_B2_B', [-0.32, 1.25, 0.42], [-0.15, 2.25, -0.3], 0.032, matBeamSteel, { parent: root });

  // ==========================================
  // 4. SAMSON HEAD, CENTER SADDLE BEARING & SIDE PLATFORM
  // ==========================================
  const platX = 0.02;
  const platY = samsonTopY + 0.02;

  // Center Saddle Bearing Structure
  // Left pillow block
  createPart('SaddlePillow_L', boxGeo(0.36, 0.24, 0.14), matDarkSteel, {
    position: [platX, platY + 0.12, -0.22],
    parent: root,
  });
  createPart('SaddleCap_L', cylinderXGeo(0.1, 0.1, 0.14, 14), matDarkSteel, {
    position: [platX, platY + 0.24, -0.22],
    parent: root,
  });
  // Right pillow block
  createPart('SaddlePillow_R', boxGeo(0.36, 0.24, 0.14), matDarkSteel, {
    position: [platX, platY + 0.12, 0.22],
    parent: root,
  });
  createPart('SaddleCap_R', cylinderXGeo(0.1, 0.1, 0.14, 14), matDarkSteel, {
    position: [platX, platY + 0.24, 0.22],
    parent: root,
  });

  // Saddle center trunnion shaft along Z
  const pivotCenterY = platY + 0.24;
  createPart('SaddleCenterShaft', cylinderZGeo(0.08, 0.08, 0.76, 16), matPolishedSteel, {
    position: [platX, pivotCenterY, 0],
    parent: root,
  });

  // SIDE MAINTENANCE PLATFORM (Mounted strictly on the +Z / ladder side!)
  // Leaves the center open so the walking beam never intersects the handrail!
  const platPosZ = 0.56;
  const platWidthZ = 0.54;
  const platLengthX = 0.92;

  createPart('SamsonPlatform', boxGeo(platLengthX, 0.05, platWidthZ), matDarkSteel, {
    position: [platX, platY, platPosZ],
    parent: root,
  });
  // Platform support brackets extending from Samson post legs
  beamBetween('PlatSupport_F', [0.08, samsonTopY, 0.24], [platX + 0.42, platY - 0.03, platPosZ + 0.2], 0.035, matDarkSteel, { parent: root });
  beamBetween('PlatSupport_B', [-0.04, samsonTopY, 0.24], [platX - 0.42, platY - 0.03, platPosZ + 0.2], 0.035, matDarkSteel, { parent: root });

  // Toe boards (kickplates) on platform perimeter
  createPart('ToeBoard_Outer', boxGeo(platLengthX + 0.004, 0.1, 0.025), matSafetyYellow, {
    position: [platX, platY + 0.05, platPosZ + platWidthZ / 2 - 0.010],
    parent: root,
  });
  createPart('ToeBoard_Front', boxGeo(0.025, 0.1, platWidthZ + 0.004), matSafetyYellow, {
    position: [platX + platLengthX / 2 - 0.010, platY + 0.05, platPosZ],
    parent: root,
  });
  createPart('ToeBoard_Back', boxGeo(0.025, 0.1, platWidthZ + 0.004), matSafetyYellow, {
    position: [platX - platLengthX / 2 + 0.010, platY + 0.05, platPosZ],
    parent: root,
  });

  // Service Ladder climbing up to the platform on the +Z side
  const ladderBottom = [-0.65, skidY + 0.14, 0.85];
  const ladderTop = [-0.15, platY, platPosZ + 0.15];

  createLadder('SamsonLadder', {
    bottom: ladderBottom,
    top: ladderTop,
    width: 0.38,
    rungCount: 11,
    railRadius: 0.022,
    rungRadius: 0.016,
    material: matSafetyYellow,
    parent: root,
  });

  // Mounting standoff brackets securing ladder to the Samson post legs
  beamBetween('LadderStandoff_Bot', [-0.65, 0.8, 0.65], [-0.65, 0.8, 0.85], 0.025, matDarkSteel, { parent: root });
  beamBetween('LadderStandoff_Mid', [-0.35, 1.8, 0.45], [-0.35, 1.8, 0.72], 0.025, matDarkSteel, { parent: root });
  beamBetween('LadderStandoff_Top', [-0.15, 2.9, 0.32], [-0.15, 2.9, 0.66], 0.025, matDarkSteel, { parent: root });

  // Safety Handrail System (3-sided around platform: Back, Outer Right, Front)
  // Completely clear of the walking beam center!
  const railH = 0.95;
  const rZ_outer = platPosZ + platWidthZ / 2 - 0.02;
  const rZ_inner = platPosZ - platWidthZ / 2 + 0.04;
  const rX_back = platX - platLengthX / 2 + 0.03;
  const rX_mid = platX;
  const rX_front = platX + platLengthX / 2 - 0.03;

  // Vertical stanchion posts
  beamBetween('RailPost_BR', [rX_back, platY, rZ_outer], [rX_back, platY + railH, rZ_outer], 0.022, matSafetyYellow, { parent: root });
  beamBetween('RailPost_MR', [rX_mid, platY, rZ_outer], [rX_mid, platY + railH, rZ_outer], 0.022, matSafetyYellow, { parent: root });
  beamBetween('RailPost_FR', [rX_front, platY, rZ_outer], [rX_front, platY + railH, rZ_outer], 0.022, matSafetyYellow, { parent: root });
  beamBetween('RailPost_BI', [rX_back, platY, rZ_inner], [rX_back, platY + railH, rZ_inner], 0.022, matSafetyYellow, { parent: root });
  beamBetween('RailPost_FI', [rX_front, platY, rZ_inner], [rX_front, platY + railH, rZ_inner], 0.022, matSafetyYellow, { parent: root });

  // Outer top and mid rails
  beamBetween('RailTop_Outer', [rX_back, platY + railH, rZ_outer], [rX_front, platY + railH, rZ_outer], 0.022, matSafetyYellow, { parent: root });
  beamBetween('RailMid_Outer', [rX_back, platY + railH * 0.5, rZ_outer], [rX_front, platY + railH * 0.5, rZ_outer], 0.018, matSafetyYellow, { parent: root });

  // Back top and mid rails
  beamBetween('RailTop_Back', [rX_back, platY + railH, rZ_inner], [rX_back, platY + railH, rZ_outer], 0.022, matSafetyYellow, { parent: root });
  beamBetween('RailMid_Back', [rX_back, platY + railH * 0.5, rZ_inner], [rX_back, platY + railH * 0.5, rZ_outer], 0.018, matSafetyYellow, { parent: root });

  // Front top and mid rails
  beamBetween('RailTop_Front', [rX_front, platY + railH, rZ_inner], [rX_front, platY + railH, rZ_outer], 0.022, matSafetyYellow, { parent: root });
  beamBetween('RailMid_Front', [rX_front, platY + railH * 0.5, rZ_inner], [rX_front, platY + railH * 0.5, rZ_outer], 0.018, matSafetyYellow, { parent: root });

  // ==========================================
  // 5. WALKING BEAM (MID-STROKE PIVOTED ASSEMBLY)
  // ==========================================
  const tiltDeg = -9.5;
  const tiltRad = (tiltDeg * Math.PI) / 180;

  const walkingBeamGroup = new THREE.Group();
  walkingBeamGroup.position.set(platX, pivotCenterY, 0);
  walkingBeamGroup.rotation.z = tiltRad;
  root.add(walkingBeamGroup);

  // Center saddle clamp housing
  createPart('SaddleCenterHousing', boxGeo(0.65, 0.28, 0.44), matDarkSteel, {
    position: [0, -0.06, 0],
    parent: walkingBeamGroup,
  });
  for (const bx of [-0.24, 0.24]) {
    for (const bz of [-0.17, 0.17]) {
      createPart(`SaddleClampBolt_${bx}_${bz}`, boltHexY, matDarkSteel, {
        position: [bx, 0.09, bz],
        parent: walkingBeamGroup,
      });
    }
  }

  // Walking Beam I-beam profile (Length: 5.6m total)
  const beamLength = 5.6;
  const beamLocalCenterX = 0.2;
  const webH = 0.44;
  const webThick = 0.08;
  const flangeW = 0.38;
  const flangeThick = 0.035;

  createPart('WalkingBeam_Web', boxGeo(beamLength, webH, webThick), matBeamSteel, {
    position: [beamLocalCenterX, 0.22, 0],
    parent: walkingBeamGroup,
  });
  createPart('WalkingBeam_TopFlange', boxGeo(beamLength, flangeThick, flangeW), matBeamSteel, {
    position: [beamLocalCenterX, 0.22 + webH / 2 + flangeThick / 2, 0],
    parent: walkingBeamGroup,
  });
  createPart('WalkingBeam_BotFlange', boxGeo(beamLength, flangeThick, flangeW), matBeamSteel, {
    position: [beamLocalCenterX, 0.22 - webH / 2 - flangeThick / 2, 0],
    parent: walkingBeamGroup,
  });

  // Vertical web stiffener plates
  const stiffenerPositions = [-2.4, -1.8, -1.1, -0.4, 0.4, 1.1, 1.8, 2.5];
  const stiffGeo = boxGeo(0.025, webH - 0.01, 0.14);
  for (let i = 0; i < stiffenerPositions.length; i++) {
    const sx = stiffenerPositions[i];
    createPart(`BeamStiff_L_${i}`, stiffGeo, matBeamSteel, {
      position: [sx, 0.22, -0.1],
      parent: walkingBeamGroup,
    });
    createPart(`BeamStiff_R_${i}`, stiffGeo, matBeamSteel, {
      position: [sx, 0.22, 0.1],
      parent: walkingBeamGroup,
    });
  }

  // ==========================================
  // 6. HORSEHEAD ASSEMBLY (FRONT +X END OF BEAM)
  // ==========================================
  const horseHeadGroup = new THREE.Group();
  horseHeadGroup.position.set(2.65, 0.22, 0);
  walkingBeamGroup.add(horseHeadGroup);

  // Top mount collar / socket to walking beam
  createPart('HorseHead_MountSaddle', boxGeo(0.55, 0.52, 0.42), matDarkSteel, {
    position: [-0.15, 0, 0],
    parent: horseHeadGroup,
  });

  // Structural cheek plates (gussets)
  const cheekThick = 0.025;
  const cheekSpacing = 0.28;
  for (const side of [-1, 1]) {
    const sName = side < 0 ? 'L' : 'R';
    const cz = (side * cheekSpacing) / 2;

    createPart(`HorseCheek_Upper_${sName}`, boxGeo(0.75, 0.7, cheekThick), matBeamSteel, {
      position: [0.25, 0.35, cz],
      rotation: [0, 0, 18],
      parent: horseHeadGroup,
    });
    createPart(`HorseCheek_Lower_${sName}`, boxGeo(0.75, 0.8, cheekThick), matBeamSteel, {
      position: [0.22, -0.42, cz],
      rotation: [0, 0, -22],
      parent: horseHeadGroup,
    });
    createPart(`HorseCheek_Mid_${sName}`, boxGeo(0.85, 0.75, cheekThick), matBeamSteel, {
      position: [0.28, -0.05, cz],
      parent: horseHeadGroup,
    });
  }

  // Cross stiffener plates between cheek plates
  for (let dy = -0.6; dy <= 0.6; dy += 0.3) {
    createPart(`HorseCrossStiff_${dy.toFixed(1)}`, boxGeo(0.2, 0.03, cheekSpacing), matBeamSteel, {
      position: [0.25, dy, 0],
      parent: horseHeadGroup,
    });
  }

  // Horsehead Curved Arc Track (Perimeter cable track)
  const arcSegments = 16;
  const arcMinDeg = -46;
  const arcMaxDeg = 46;
  const arcStep = (arcMaxDeg - arcMinDeg) / (arcSegments - 1);
  const arcRadius = 0.75;
  const arcCenter = [-0.1, -0.05];

  let topArcX = 0;
  let topArcY = 0;

  for (let i = 0; i < arcSegments; i++) {
    const deg = arcMinDeg + i * arcStep;
    const rad = (deg * Math.PI) / 180;
    const ax = arcCenter[0] + Math.cos(rad) * arcRadius;
    const ay = arcCenter[1] + Math.sin(rad) * arcRadius * 1.35;

    if (i === arcSegments - 1) {
      topArcX = ax;
      topArcY = ay;
    }

    createPart(`HorseArcFace_${i}`, boxGeo(0.04, 0.16, 0.38), matBeamSteel, {
      position: [ax, ay, 0],
      rotation: [0, 0, -deg],
      parent: horseHeadGroup,
    });
    createPart(`HorseArcRim_L_${i}`, boxGeo(0.06, 0.15, 0.03), matDarkSteel, {
      position: [ax + 0.01, ay, -0.18],
      rotation: [0, 0, -deg],
      parent: horseHeadGroup,
    });
    createPart(`HorseArcRim_R_${i}`, boxGeo(0.06, 0.15, 0.03), matDarkSteel, {
      position: [ax + 0.01, ay, 0.18],
      rotation: [0, 0, -deg],
      parent: horseHeadGroup,
    });
    createPart(`HorseArcDivider_${i}`, boxGeo(0.05, 0.15, 0.025), matDarkSteel, {
      position: [ax + 0.01, ay, 0],
      rotation: [0, 0, -deg],
      parent: horseHeadGroup,
    });
  }

  // Solid top cap plate bridging cheek plates and top arc
  createPart('HorseTopCap', boxGeo(0.25, 0.05, 0.38), matDarkSteel, {
    position: [topArcX - 0.06, topArcY - 0.02, 0],
    parent: horseHeadGroup,
  });

  // Top cable keeper horns / anchor brackets (firmly anchored to top cap plate)
  createPart('HorseCableHorn_L', cylinderXGeo(0.04, 0.04, 0.14, 10), matDarkSteel, {
    position: [topArcX - 0.04, topArcY + 0.03, -0.1],
    parent: horseHeadGroup,
  });
  createPart('HorseCableHorn_R', cylinderXGeo(0.04, 0.04, 0.14, 10), matDarkSteel, {
    position: [topArcX - 0.04, topArcY + 0.03, 0.1],
    parent: horseHeadGroup,
  });

  // ==========================================
  // 7. EQUALIZER BEAM & BEARINGS (REAR OF WALKING BEAM)
  // ==========================================
  const eqLocalX = -2.48;
  const eqLocalY = 0.12;

  createPart('EqualizerTrunnionHousing', boxGeo(0.4, 0.3, 0.36), matDarkSteel, {
    position: [eqLocalX, eqLocalY - 0.12, 0],
    parent: walkingBeamGroup,
  });
  createPart('EqualizerTrunnionShaft', cylinderXGeo(0.07, 0.07, 0.36, 12), matPolishedSteel, {
    position: [eqLocalX, eqLocalY - 0.22, 0],
    parent: walkingBeamGroup,
  });

  // Equalizer Beam (transverse crossbar spanning across Z)
  const eqBarSpan = 1.48;
  createPart('EqualizerCrossBeam', boxGeo(0.18, 0.22, eqBarSpan), matBeamSteel, {
    position: [eqLocalX, eqLocalY - 0.22, 0],
    parent: walkingBeamGroup,
  });
  createPart('Equalizer_TFlange', boxGeo(0.24, 0.02, eqBarSpan), matBeamSteel, {
    position: [eqLocalX, eqLocalY - 0.1, 0],
    parent: walkingBeamGroup,
  });
  createPart('Equalizer_BFlange', boxGeo(0.24, 0.02, eqBarSpan), matBeamSteel, {
    position: [eqLocalX, eqLocalY - 0.34, 0],
    parent: walkingBeamGroup,
  });

  for (const side of [-1, 1]) {
    const sName = side < 0 ? 'L' : 'R';
    const ez = side * 0.72;
    createPart(`EqBearingHousing_${sName}`, cylinderZGeo(0.09, 0.09, 0.14, 12), matDarkSteel, {
      position: [eqLocalX, eqLocalY - 0.22, ez],
      parent: walkingBeamGroup,
    });
    createPart(`EqWristPin_${sName}`, cylinderZGeo(0.05, 0.05, 0.18, 12), matPolishedSteel, {
      position: [eqLocalX, eqLocalY - 0.22, ez],
      parent: walkingBeamGroup,
    });
  }

  // ==========================================
  // 8. WELLHEAD & BRIDLE CABLE SUSPENSION
  // ==========================================
  const wellheadX = 3.3;

  createPart('Wellhead_BaseFlange', cylinderYGeo(0.38, 0.42, 0.16, 16), matDarkSteel, {
    position: [wellheadX, 0.34, 0],
    parent: root,
  });
  for (let a = 0; a < 8; a++) {
    const ang = (a * Math.PI) / 4;
    createPart(`WellheadBaseBolt_${a}`, boltHexY, matDarkSteel, {
      position: [wellheadX + Math.cos(ang) * 0.34, 0.43, Math.sin(ang) * 0.34],
      parent: root,
    });
  }

  createPart('Wellhead_CasingSpool', cylinderYGeo(0.22, 0.26, 0.35, 14), matWellhead, {
    position: [wellheadX, 0.58, 0],
    parent: root,
  });
  createPart('Wellhead_Flange1', cylinderYGeo(0.32, 0.32, 0.08, 16), matWellhead, {
    position: [wellheadX, 0.78, 0],
    parent: root,
  });

  // Master gate valve
  createPart('Wellhead_MasterValve', boxGeo(0.36, 0.32, 0.36), matWellhead, {
    position: [wellheadX, 0.98, 0],
    parent: root,
  });
  createPart('Wellhead_ValveBonnet', cylinderXGeo(0.08, 0.08, 0.18, 10), matWellhead, {
    position: [wellheadX + 0.24, 0.98, 0],
    parent: root,
  });
  createPart('Wellhead_HandwheelRim', torusGeo(0.14, 0.02, 8, 16), matSafetyYellow, {
    position: [wellheadX + 0.34, 0.98, 0],
    rotation: [0, 90, 0],
    parent: root,
  });
  createPart('Wellhead_HandwheelSpoke1', cylinderYGeo(0.012, 0.012, 0.28, 6), matSafetyYellow, {
    position: [wellheadX + 0.34, 0.98, 0],
    parent: root,
  });
  createPart('Wellhead_HandwheelSpoke2', cylinderZGeo(0.012, 0.012, 0.28, 6), matSafetyYellow, {
    position: [wellheadX + 0.34, 0.98, 0],
    parent: root,
  });

  // Flow Tee
  createPart('Wellhead_FlowTee', cylinderYGeo(0.16, 0.16, 0.34, 12), matWellhead, {
    position: [wellheadX, 1.28, 0],
    parent: root,
  });

  // Horizontal production flow line exiting to right (+Z)
  createPart('Wellhead_FlowLineSpool', cylinderZGeo(0.07, 0.07, 0.45, 10), matWellhead, {
    position: [wellheadX, 1.28, 0.3],
    parent: root,
  });
  createPart('Wellhead_FlowValve', boxGeo(0.2, 0.2, 0.2), matWellhead, {
    position: [wellheadX, 1.28, 0.58],
    parent: root,
  });
  // Valve stem connecting valve body to handwheel (resolves QA warning)
  createPart('Wellhead_FlowValveStem', cylinderYGeo(0.016, 0.016, 0.14, 8), matPolishedSteel, {
    position: [wellheadX, 1.35, 0.58],
    parent: root,
  });
  createPart('Wellhead_FlowHandwheel', torusGeo(0.09, 0.015, 8, 14), matSafetyYellow, {
    position: [wellheadX, 1.42, 0.58],
    rotation: [90, 0, 0],
    parent: root,
  });
  createPart('Wellhead_FlowPipeExit', cylinderZGeo(0.05, 0.05, 0.5, 8), matDarkSteel, {
    position: [wellheadX, 1.28, 0.9],
    parent: root,
  });

  // Pressure gauge
  createPart('PressureGaugeStem', cylinderYGeo(0.016, 0.016, 0.12, 6), matBrass, {
    position: [wellheadX, 1.5, -0.1],
    parent: root,
  });
  createPart('PressureGaugeBody', cylinderZGeo(0.07, 0.07, 0.035, 12), matBrass, {
    position: [wellheadX, 1.6, -0.1],
    parent: root,
  });
  createPart('PressureGaugeDial', cylinderZGeo(0.062, 0.062, 0.038, 12), matPolishedSteel, {
    position: [wellheadX, 1.6, -0.09],
    parent: root,
  });

  // Stuffing Box / Packing Gland
  createPart('StuffingBox', cylinderYGeo(0.13, 0.13, 0.32, 14), matBrass, {
    position: [wellheadX, 1.58, 0],
    parent: root,
  });
  createPart('PackingGlandCap', cylinderYGeo(0.15, 0.15, 0.08, 14), matDarkSteel, {
    position: [wellheadX, 1.76, 0],
    parent: root,
  });

  // Polished Rod
  createPart('PolishedRod', cylinderYGeo(0.024, 0.024, 1.8, 16), matPolishedSteel, {
    position: [wellheadX, 2.5, 0],
    parent: root,
  });

  // Carrier Bar holding the polished rod clamp
  const carrierY = 2.45;
  createPart('CarrierBarBody', boxGeo(0.16, 0.1, 0.56), matDarkSteel, {
    position: [wellheadX, carrierY, 0],
    parent: root,
  });
  createPart('PolishedRodClamp', boxGeo(0.14, 0.12, 0.14), matDarkSteel, {
    position: [wellheadX, carrierY + 0.11, 0],
    parent: root,
  });
  createPart('ClampBolt1', boltHexX, matPolishedSteel, {
    position: [wellheadX + 0.08, carrierY + 0.11, -0.04],
    parent: root,
  });
  createPart('ClampBolt2', boltHexX, matPolishedSteel, {
    position: [wellheadX + 0.08, carrierY + 0.11, 0.04],
    parent: root,
  });

  createPart('CarrierSocket_L', cylinderYGeo(0.035, 0.035, 0.12, 10), matDarkSteel, {
    position: [wellheadX, carrierY, -0.2],
    parent: root,
  });
  createPart('CarrierSocket_R', cylinderYGeo(0.035, 0.035, 0.12, 10), matDarkSteel, {
    position: [wellheadX, carrierY, 0.2],
    parent: root,
  });

  // Bridle wire ropes running from carrier bar sockets straight up tangentially to horsehead arc
  const bridleTopY = 3.52;
  beamBetween('BridleWire_L', [wellheadX, carrierY + 0.06, -0.2], [wellheadX, bridleTopY, -0.2], 0.012, matWireCable, { parent: root });
  beamBetween('BridleWire_R', [wellheadX, carrierY + 0.06, 0.2], [wellheadX, bridleTopY, 0.2], 0.012, matWireCable, { parent: root });

  createPart('BridleSpreader', boxGeo(0.03, 0.03, 0.44), matDarkSteel, {
    position: [wellheadX, 3.0, 0],
    parent: root,
  });

  // ==========================================
  // 9. GEAR REDUCER (DOUBLE REDUCTION GEARBOX)
  // ==========================================
  const reducerX = -1.85;
  const reducerBaseY = skidY + 0.12;

  createPart('ReducerSubBase_L', boxGeo(1.4, 0.12, 0.22), matDarkSteel, {
    position: [reducerX, reducerBaseY + 0.06, -0.55],
    parent: root,
  });
  createPart('ReducerSubBase_R', boxGeo(1.4, 0.12, 0.22), matDarkSteel, {
    position: [reducerX, reducerBaseY + 0.06, 0.55],
    parent: root,
  });

  createPart('Reducer_LowerSump', boxGeo(1.25, 0.52, 0.94), matDarkSteel, {
    position: [reducerX, reducerBaseY + 0.38, 0],
    parent: root,
  });
  createPart('Reducer_SplitFlange', boxGeo(1.36, 0.04, 1.04), matDarkSteel, {
    position: [reducerX, reducerBaseY + 0.64, 0],
    parent: root,
  });
  createPart('Reducer_UpperCover', boxGeo(1.15, 0.44, 0.86), matDarkSteel, {
    position: [reducerX, reducerBaseY + 0.88, 0],
    parent: root,
  });
  createPart('Reducer_Hatch', boxGeo(0.5, 0.03, 0.45), matDarkSteel, {
    position: [reducerX, reducerBaseY + 1.11, 0],
    parent: root,
  });
  createPart('Reducer_Breather', cylinderYGeo(0.02, 0.02, 0.14, 8), matDarkSteel, {
    position: [reducerX + 0.35, reducerBaseY + 1.17, 0.15],
    parent: root,
  });
  createPart('Reducer_BreatherCap', cylinderYGeo(0.045, 0.045, 0.04, 8), matDarkSteel, {
    position: [reducerX + 0.35, reducerBaseY + 1.25, 0.15],
    parent: root,
  });

  const crankShaftY = reducerBaseY + 0.64;

  createPart('ReducerBearingHub_L', cylinderZGeo(0.24, 0.24, 0.14, 16), matDarkSteel, {
    position: [reducerX, crankShaftY, -0.522],
    parent: root,
  });
  createPart('ReducerBearingHub_R', cylinderZGeo(0.24, 0.24, 0.14, 16), matDarkSteel, {
    position: [reducerX, crankShaftY, 0.52],
    parent: root,
  });

  for (let b = 0; b < 6; b++) {
    const bang = (b * Math.PI) / 3;
    createPart(`ReducerBolt_L_${b}`, boltHexZ, matDarkSteel, {
      position: [reducerX + Math.cos(bang) * 0.18, crankShaftY + Math.sin(bang) * 0.18, -0.58],
      parent: root,
    });
    createPart(`ReducerBolt_R_${b}`, boltHexZ, matDarkSteel, {
      position: [reducerX + Math.cos(bang) * 0.18, crankShaftY + Math.sin(bang) * 0.18, 0.58],
      parent: root,
    });
  }

  createPart('SlowSpeedCrankshaft', cylinderZGeo(0.1, 0.1, 1.48, 16), matDarkSteel, {
    position: [reducerX, crankShaftY, 0],
    parent: root,
  });

  // ==========================================
  // 10. CRANKS, SAFETY ORANGE COUNTERWEIGHTS & PITMAN ARMS
  // ==========================================
  const crankAngleDeg = 50;
  const crankRad = (crankAngleDeg * Math.PI) / 180;
  const strokeRadius = 0.66;

  const pinX = reducerX + Math.cos(crankRad) * strokeRadius;
  const pinY = crankShaftY + Math.sin(crankRad) * strokeRadius;

  const eqRelX = eqLocalX;
  const eqRelY = eqLocalY - 0.22;
  const eqWorldX = platX + eqRelX * Math.cos(tiltRad) - eqRelY * Math.sin(tiltRad);
  const eqWorldY = pivotCenterY + eqRelX * Math.sin(tiltRad) + eqRelY * Math.cos(tiltRad);

  for (const side of [-1, 1]) {
    const sName = side < 0 ? 'L' : 'R';
    const crankZ = side * 0.72;

    createPart(`CrankHub_${sName}`, cylinderZGeo(0.18, 0.18, 0.12, 16), matDarkSteel, {
      position: [reducerX, crankShaftY, crankZ],
      parent: root,
    });

    const crankArmLen = 1.6;
    createPart(`CrankArm_${sName}`, boxGeo(crankArmLen, 0.24, 0.09), matDarkSteel, {
      position: [reducerX, crankShaftY, crankZ],
      rotation: [0, 0, crankAngleDeg],
      parent: root,
    });

    // 3 stroke adjustment holes
    for (const rHole of [0.48, 0.66, 0.84]) {
      const hx = reducerX + Math.cos(crankRad) * rHole;
      const hy = crankShaftY + Math.sin(crankRad) * rHole;
      createPart(`StrokeHoleRing_${sName}_${rHole}`, cylinderZGeo(0.065, 0.065, 0.095, 12), matDarkSteel, {
        position: [hx, hy, crankZ],
        parent: root,
      });
    }

    // Active Crank Pin
    const pinZ = crankZ + side * 0.08;
    createPart(`ActiveCrankPin_${sName}`, cylinderZGeo(0.055, 0.055, 0.18, 14), matPolishedSteel, {
      position: [pinX, pinY, pinZ],
      parent: root,
    });
    createPart(`CrankPinNut_${sName}`, cylinderZGeo(0.075, 0.075, 0.04, 8), matDarkSteel, {
      position: [pinX, pinY, pinZ + side * 0.09],
      parent: root,
    });

    // HIGH-VISIBILITY SAFETY HAZARD COUNTERWEIGHTS
    // Bold safety orange finish ensures high visual read on both sides!
    const cwAngleDeg = crankAngleDeg + 180;
    const cwRad = (cwAngleDeg * Math.PI) / 180;
    const cwCenterX = reducerX + Math.cos(cwRad) * 0.52;
    const cwCenterY = crankShaftY + Math.sin(cwRad) * 0.52;

    // Main heavy counterweight body (safety hazard orange)
    createPart(`CounterWeight_Main_${sName}`, boxGeo(0.9, 0.64, 0.224), matHazardOrange, {
      position: [cwCenterX, cwCenterY, crankZ],
      rotation: [0, 0, crankAngleDeg],
      parent: root,
    });
    // Auxiliary bolted segment (safety hazard orange)
    createPart(`CounterWeight_Aux_${sName}`, boxGeo(0.82, 0.52, 0.16), matHazardOrange, {
      position: [cwCenterX + Math.cos(cwRad) * 0.18, cwCenterY + Math.sin(cwRad) * 0.18, crankZ + side * 0.12],
      rotation: [0, 0, crankAngleDeg],
      parent: root,
    });
    // Heavy clamping plate (contrasting dark steel)
    createPart(`CounterWeight_Clamp_${sName}`, boxGeo(0.4, 0.14, 0.28), matDarkSteel, {
      position: [cwCenterX, cwCenterY, crankZ],
      rotation: [0, 0, crankAngleDeg],
      parent: root,
    });
    // Clamping bolts
    for (const d of [-0.25, 0.25]) {
      const bx = cwCenterX + Math.cos(cwRad + Math.PI / 2) * d;
      const by = cwCenterY + Math.sin(cwRad + Math.PI / 2) * d;
      createPart(`CounterWeightBolt_${sName}_${d}`, cylinderZGeo(0.03, 0.03, 0.32, 8), matDarkSteel, {
        position: [bx, by, crankZ],
        parent: root,
      });
    }

    // PITMAN ARMS
    const eqWorldZ = side * 0.72;
    const pitmanBottomZ = pinZ;

    createPart(`PitmanBigEnd_${sName}`, cylinderZGeo(0.09, 0.09, 0.14, 14), matDarkSteel, {
      position: [pinX, pinY, pitmanBottomZ],
      parent: root,
    });
    createPart(`PitmanSmallEnd_${sName}`, cylinderZGeo(0.08, 0.08, 0.14, 14), matDarkSteel, {
      position: [eqWorldX, eqWorldY, eqWorldZ],
      parent: root,
    });

    beamBetween(`PitmanArmColumn_${sName}`, [pinX, pinY, pitmanBottomZ], [eqWorldX, eqWorldY, eqWorldZ], 0.055, matBeamSteel, { parent: root });
    beamBetween(`PitmanRib1_${sName}`, [pinX + 0.03, pinY, pitmanBottomZ], [eqWorldX + 0.03, eqWorldY, eqWorldZ], 0.025, matBeamSteel, { parent: root });
    beamBetween(`PitmanRib2_${sName}`, [pinX - 0.03, pinY, pitmanBottomZ], [eqWorldX - 0.03, eqWorldY, eqWorldZ], 0.025, matBeamSteel, { parent: root });
  }

  // ==========================================
  // 11. PRIME MOVER (ELECTRIC MOTOR) & BELT DRIVE
  // ==========================================
  const motorX = -3.25;
  const motorBaseY = skidY + 0.12;

  createPart('MotorSlideRail_L', boxGeo(0.9, 0.08, 0.12), matDarkSteel, {
    position: [motorX, motorBaseY + 0.04, -0.45],
    parent: root,
  });
  createPart('MotorSlideRail_R', boxGeo(0.9, 0.08, 0.12), matDarkSteel, {
    position: [motorX, motorBaseY + 0.04, 0.15],
    parent: root,
  });
  createPart('MotorTensionScrew_L', cylinderXGeo(0.016, 0.016, 0.35, 8), matPolishedSteel, {
    position: [motorX - 0.48, motorBaseY + 0.04, -0.45],
    parent: root,
  });
  createPart('MotorTensionScrew_R', cylinderXGeo(0.016, 0.016, 0.35, 8), matPolishedSteel, {
    position: [motorX - 0.48, motorBaseY + 0.04, 0.15],
    parent: root,
  });

  createPart('MotorCradle', boxGeo(0.72, 0.116, 0.65), matDarkSteel, {
    position: [motorX, motorBaseY + 0.138, -0.15],
    parent: root,
  });

  const motorCenterY = motorBaseY + 0.46;
  const motorCenterZ = -0.15;
  createPart('MotorStatorBody', cylinderXGeo(0.26, 0.26, 0.64, 18), matBeamSteel, {
    position: [motorX, motorCenterY, motorCenterZ],
    parent: root,
  });

  for (let f = 0; f < 10; f++) {
    const fang = (f * Math.PI) / 5;
    const fx = motorX;
    const fy = motorCenterY + Math.cos(fang) * 0.27;
    const fz = motorCenterZ + Math.sin(fang) * 0.27;
    createPart(`MotorFin_${f}`, boxGeo(0.56, 0.02, 0.03), matBeamSteel, {
      position: [fx, fy, fz],
      rotation: [(-fang * 180) / Math.PI, 0, 0],
      parent: root,
    });
  }

  createPart('MotorEndBell_Front', cylinderXGeo(0.24, 0.24, 0.08, 16), matDarkSteel, {
    position: [motorX + 0.34, motorCenterY, motorCenterZ],
    parent: root,
  });
  createPart('MotorEndBell_Rear', cylinderXGeo(0.24, 0.24, 0.08, 16), matDarkSteel, {
    position: [motorX - 0.34, motorCenterY, motorCenterZ],
    parent: root,
  });
  createPart('MotorFanCowl', cylinderXGeo(0.25, 0.25, 0.12, 16), matDarkSteel, {
    position: [motorX - 0.42, motorCenterY, motorCenterZ],
    parent: root,
  });

  createPart('MotorJunctionBox', boxGeo(0.18, 0.2, 0.16), matSafetyYellow, {
    position: [motorX + 0.1, motorCenterY + 0.25, motorCenterZ + 0.18],
    parent: root,
  });

  createPart('MotorDriveShaft', cylinderZGeo(0.045, 0.045, 0.38, 12), matPolishedSteel, {
    position: [motorX, motorCenterY, motorCenterZ - 0.38],
    parent: root,
  });
  createPart('MotorPulley', cylinderZGeo(0.16, 0.16, 0.14, 16), matDarkSteel, {
    position: [motorX, motorCenterY, -0.48],
    parent: root,
  });

  const inputSheaveX = reducerX - 0.35;
  const inputSheaveY = crankShaftY - 0.12;
  createPart('ReducerInputSheave', cylinderZGeo(0.36, 0.36, 0.14, 18), matDarkSteel, {
    position: [inputSheaveX, inputSheaveY, -0.48],
    parent: root,
  });

  // ==========================================
  // 12. BELT GUARD ENCLOSURE
  // ==========================================
  const bgCenterX = (motorX + inputSheaveX) / 2;
  const bgCenterY = (motorCenterY + inputSheaveY) / 2;
  const bgZ = -0.48;

  createPart('BeltGuard_MainCase', boxGeo(1.48, 0.82, 0.22), matSafetyYellow, {
    position: [bgCenterX, bgCenterY, bgZ],
    parent: root,
  });
  createPart('BeltGuard_FrontCap', cylinderYGeo(0.41, 0.41, 0.22, 14), matSafetyYellow, {
    position: [bgCenterX + 0.74, bgCenterY, bgZ],
    rotation: [90, 0, 0],
    parent: root,
  });
  createPart('BeltGuard_RearCap', cylinderYGeo(0.41, 0.41, 0.22, 14), matSafetyYellow, {
    position: [bgCenterX - 0.74, bgCenterY, bgZ],
    rotation: [90, 0, 0],
    parent: root,
  });

  createPart('BeltGuard_TopRim', boxGeo(1.5, 0.04, 0.25), matSafetyYellow, {
    position: [bgCenterX, bgCenterY + 0.42, bgZ],
    parent: root,
  });
  createPart('BeltGuard_BotRim', boxGeo(1.5, 0.04, 0.25), matSafetyYellow, {
    position: [bgCenterX, bgCenterY - 0.42, bgZ],
    parent: root,
  });

  createPart('BeltGuard_VentPanel', boxGeo(1.2, 0.58, 0.02), matDarkSteel, {
    position: [bgCenterX, bgCenterY, bgZ - 0.115],
    parent: root,
  });

  beamBetween('BeltGuardSupport_F', [inputSheaveX, skidY + 0.12, -0.65], [inputSheaveX, bgCenterY - 0.2, bgZ], 0.03, matDarkSteel, { parent: root });
  beamBetween('BeltGuardSupport_R', [motorX, skidY + 0.12, -0.65], [motorX, bgCenterY - 0.2, bgZ], 0.03, matDarkSteel, { parent: root });

  createPart('SafetyWarningPlate', boxGeo(0.24, 0.16, 0.02), matSafetyYellow, {
    position: [bgCenterX, bgCenterY, bgZ - 0.13],
    parent: root,
  });

  return root;
}

Brief and retained revisions

No brief or earlier revisions are recorded. The source download contains the version built for this page.
