Pinball machine
Sloped playfield cabinet and raised backbox
Earlier examples from earlier Kiln versions.

Drag to orbit after opening. The model starts stationary.
For your engine. The download is a standard glTF 2.0 binary (GLB) with PBR metallic-roughness materials. glTF stores materials, not lighting or tone mapping, so your engine decides how they read. This 3D view tone-maps with Review Neutral, the Khronos PBR Neutral construction with a smaller glare offset (0.015 instead of 0.04), at exposure 0.9. Its Tone mapping control also shows ACES and Linear, for comparison.
Build measurements
- Triangles
- 8,528
- Estimated draws
- 147
- Materials
- 21
- Textures
- 0
- Animation clips
- 0
- Bounds X × Y × Z
- 1.45 × 1.78 × 0.54 m
- Build warnings
- 0
Measurements come from this build.
Download this build
Runtime: 202,752 bytes. Original: 202,520 bytes.
These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.
Runtime provenance metadataSHA-256 download hashes
- Runtime GLB
- 271d24cd0252f1d8180c3f9daf27dddc9a64f5b3a15b4eef5e76acceb4a2c43e
- Original GLB
- fa20da3a5fb75bb379cee36d1974d34389fd1208754cfd5792a8944cc831542d
- Source
- 2d6fcacf60bef1382acff3d10b1f63585c2c7380dfc8c94c9f7fda2a1aaea726
The example source is part of the Kiln repository. Repository licence: MIT.
These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.
Recorded authorship
GLM 5.3 Flash through OpenCode
Source-header credit
- Source access
- Source header declares no repository implementation or finished examples supplied
- Inherited context
- Not independently recorded; source-header declarations only
- Starting example
- None supplied, according to source header
- Human input
- Not recorded
- Authoring review
- Not recorded

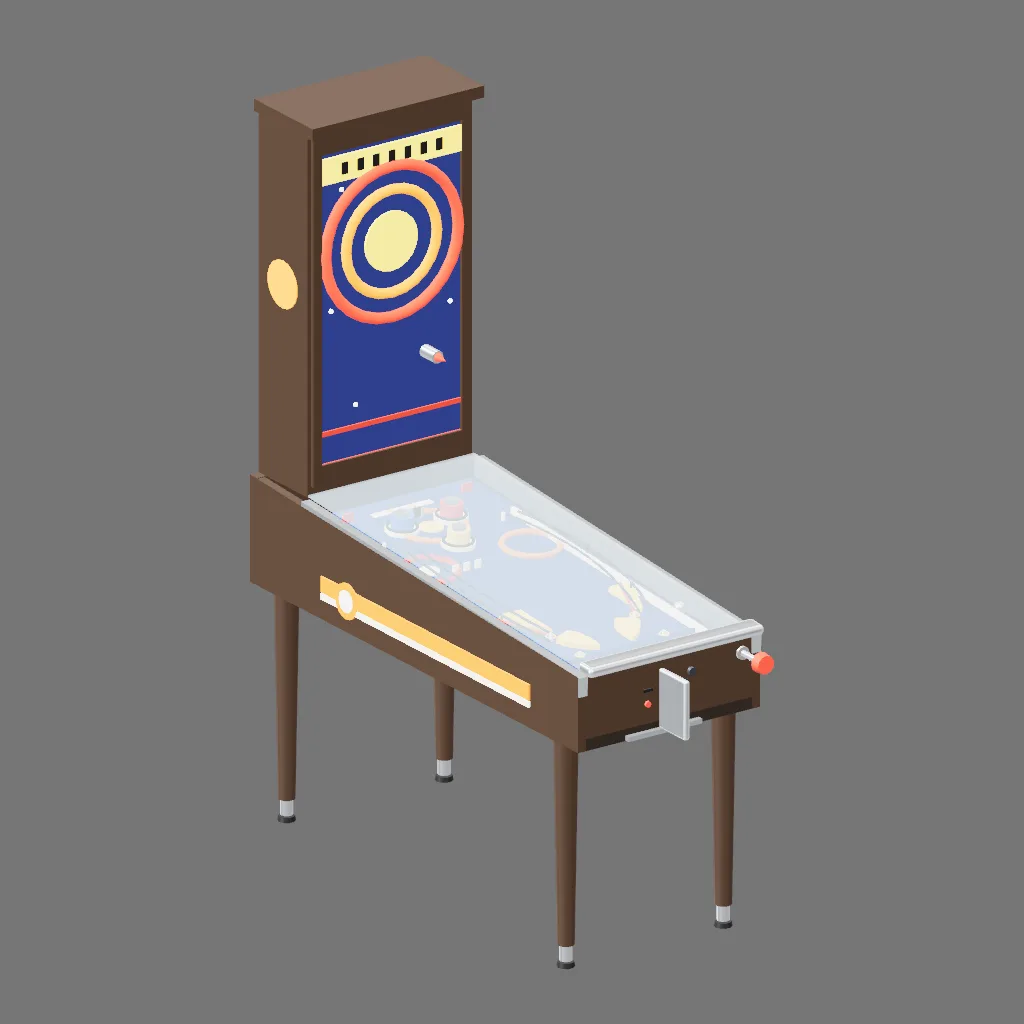

Picture rendered from an earlier revision of this source.
The source behind this build
// Maintainer revision: flush-face fix (2026-11-12, Claude Sonnet 5.5 via Claude Code): 4 part edits that separate coplanar faces; materials, names, hierarchy and animation are unchanged.
// Authored by: opencode-go/glm-5.3-flash, via opencode.
//
// Repaired by hand afterwards: the backbox was built entirely behind the
// cabinet's rear face and cantilevered on nothing. Sliding it forward onto the
// cabinet only traded one fault for another, because the playfield runs the
// cabinet's full length -- anything the head gains in support it takes out of
// the glass. So the cabinet grew the bay a real machine has: it is 1.34 m long
// rather than 1.14, its rear face is at x = -0.82, its back legs moved with it,
// and the head now sits on that bay entirely behind the playfield glass. The
// backbox itself is unchanged apart from being 0.20 m deep instead of 0.38.
// Nothing else in the program was touched.
//
// Written by the model itself through the Kiln MCP tools, and cut off
// mid-run rather than finished -- by a provider limit, or by the
// dispatch deadline. The program below is what was on disk when the
// session ended; how many times it had looked at its own contact sheet
// by then is not recorded, so this one does not make the claim the
// others do.
//
// Dispatched into a clean directory containing only the brief and the Kiln
// skills, with no access to this repository or to any finished example.
const meta = { name: 'PinballMachine', category: 'prop', role: 'prop' };
