Gramophone
Brass horn, wooden cabinet and hinged lid
Earlier examples from earlier Kiln versions.

Drag to orbit after opening. The model starts stationary.
For your engine. The download is a standard glTF 2.0 binary (GLB) with PBR metallic-roughness materials. glTF stores materials, not lighting or tone mapping, so your engine decides how they read. This 3D view tone-maps with Review Neutral, the Khronos PBR Neutral construction with a smaller glare offset (0.015 instead of 0.04), at exposure 0.9. Its Tone mapping control also shows ACES and Linear, for comparison.
Build measurements
- Triangles
- 10,724
- Estimated draws
- 137
- Materials
- 10
- Textures
- 0
- Animation clips
- 0
- Bounds X × Y × Z
- 0.74 × 0.75 × 0.46 m
- Build warnings
- 0
Measurements come from this build.
Download this build
Runtime: 260,708 bytes. Original: 260,484 bytes.
These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.
Runtime provenance metadataSHA-256 download hashes
- Runtime GLB
- 77e5149fd2eb19125355462b76c4ae8f4a98bf62dfd79c570edb3285f9f8c7f4
- Original GLB
- 1f399c2093413e3ede99aaa97ba0769d02daf349ab18a2483958af03a9e566a6
- Source
- 669dabfd56f78b88ec2c00107121c325f3f7a8ce63103f0f96eee14bf8dede0f
The example source is part of the Kiln repository. Repository licence: MIT.
These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.
Recorded authorship
Gemini 3.8 Flash through Antigravity CLI (agy)
Source-header credit
- Source access
- Source header declares no repository implementation or finished examples supplied
- Inherited context
- Not independently recorded; source-header declarations only
- Starting example
- None supplied, according to source header
- Human input
- Header declares no hand-authored source; other intervention not recorded
- Authoring review
- Six-view review declared; renderer fidelity not recorded

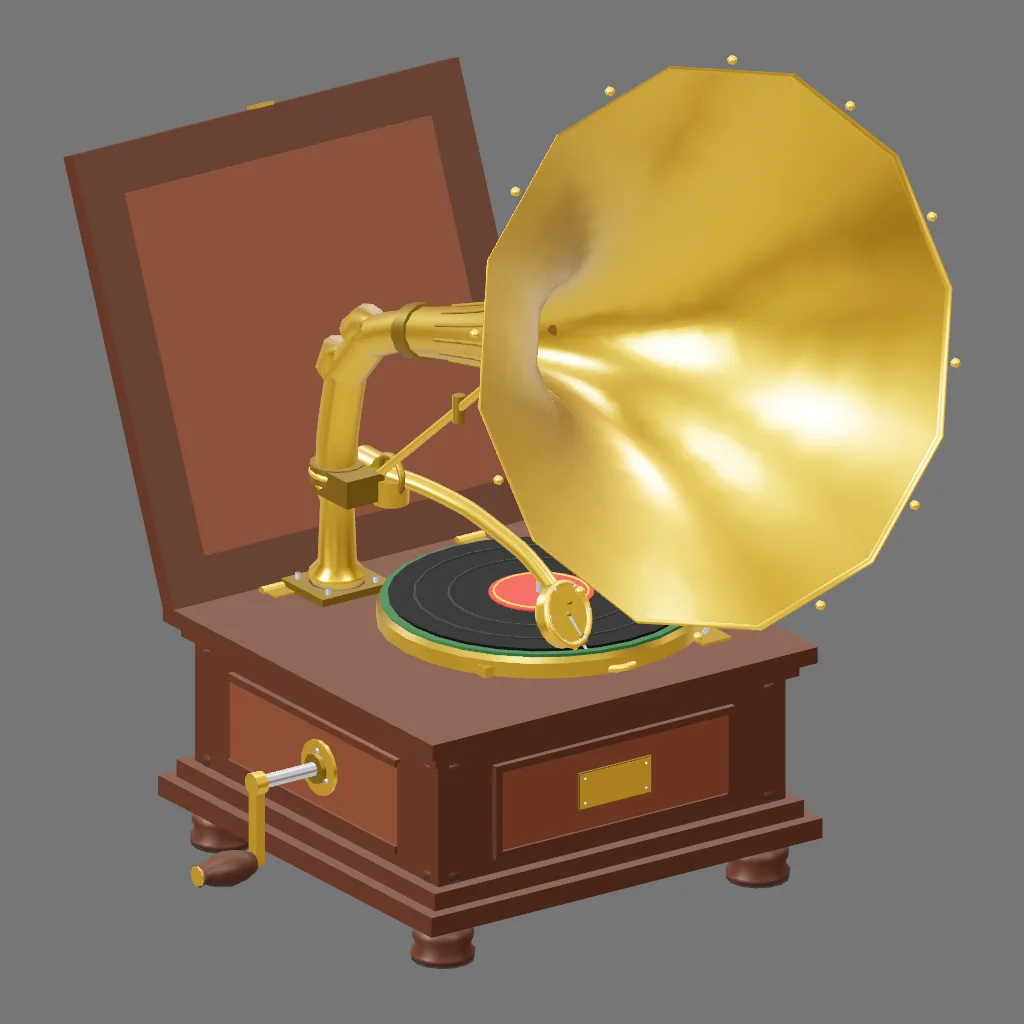

Picture rendered from an earlier revision of this source.
The source behind this build
// Maintainer revision: flush-face fix (2026-11-12, Claude Sonnet 5.5 via Claude Code): 3 part edits that separate coplanar faces; materials, names, hierarchy and animation are unchanged.
// Authored by: gemini-3.8-flash-high, via agy.
//
// Written by the model itself through the Kiln MCP tools: it wrote the
// program, rendered it, looked at its own six-view contact sheet, and
// revised. Not a line of it is hand-authored.
//
// Dispatched into a clean directory containing only the brief and the Kiln
// skills, with no access to this repository or to any finished example.
const meta = { name: 'Gramophone', category: 'prop' };
function build() {
const root = createRoot('Gramophone');
// ==========================================
// MATERIALS
// ==========================================
const woodMahogany = gameMaterial(0x3e1f10, { roughness: 0.55, metalness: 0.05 });
const woodPanel = gameMaterial(0x542b16, { roughness: 0.60, metalness: 0.05 });
const brassPolished = gameMaterial(0xebb438, { roughness: 0.25, metalness: 0.90 });
const darkBrass = gameMaterial(0x917122, { roughness: 0.40, metalness: 0.85 });
const steelPolished = gameMaterial(0xd8d8d8, { roughness: 0.20, metalness: 0.95 });
const feltGreen = gameMaterial(0x1a4522, { roughness: 0.95, metalness: 0.0 });
const recordVinyl = gameMaterial(0x111111, { roughness: 0.30, metalness: 0.15 });
const recordGroove = gameMaterial(0x1c1c1c, { roughness: 0.45, metalness: 0.10 });
const recordLabel = gameMaterial(0x961515, { roughness: 0.65, metalness: 0.0 });
const mica = gameMaterial(0xe8e4db, { roughness: 0.20, metalness: 0.10 });
// ==========================================
// 1. TURNED WOODEN PLINTH CABINET
// ==========================================
// 1A. Four Turned Classical Feet (touching Y = 0)
// Turned profile: pad foot -> scotia -> torus -> collar
const footProfile = [
[0.000, 0.000],
[0.024, 0.000],
[0.025, 0.006],
[0.021, 0.012],
[0.024, 0.020],
[0.022, 0.027],
[0.015, 0.031],
[0.018, 0.035],
[0.000, 0.035]
];
const footGeo = lathe(footProfile, 14);
const footPositions = [
[0.145, 0.000, 0.145],
[-0.145, 0.000, 0.145],
[0.145, 0.000, -0.145],
[-0.145, 0.000, -0.145]
];
footPositions.forEach(([fx, fy, fz], idx) => {
createPart(`Foot_${idx}`, footGeo, woodMahogany, {
position: [fx, fy, fz],
parent: root
});
});
// 1B. Stepped Plinth Base Mouldings (Y = 0.035 to 0.065)
createPart('PlinthBaseTier1', boxGeo(0.36, 0.016, 0.36), woodMahogany, {
position: [0, 0.043, 0],
parent: root
});
createPart('PlinthBaseMoulding', boxGeo(0.34, 0.014, 0.34), woodMahogany, {
position: [0, 0.058, 0],
parent: root
});
// 1C. Cabinet Main Body (Y = 0.065 to 0.165)
createPart('CabinetCore', boxGeo(0.32, 0.100, 0.32), woodMahogany, {
position: [0, 0.115, 0],
parent: root
});
// Four Turned Corner Columns
const columnProfile = [
[0.000, 0.000],
[0.016, 0.000],
[0.016, 0.008],
[0.013, 0.014],
[0.011, 0.022],
[0.011, 0.078],
[0.013, 0.086],
[0.016, 0.092],
[0.016, 0.100],
[0.000, 0.100]
];
const columnGeo = lathe(columnProfile, 14);
footPositions.forEach(([cx, _, cz], idx) => {
createPart(`Column_${idx}`, columnGeo, woodMahogany, {
position: [cx, 0.065, cz],
parent: root
});
});
// Recessed Side Panels with Moulding Trim
// Front (+X) panel
createPart('Panel_Front_Backing', boxGeo(0.008, 0.072, 0.216), woodPanel, {
position: [0.159, 0.115, 0],
parent: root
});
createPart('Trim_Front_Top', boxGeo(0.006, 0.006, 0.22), woodMahogany, {
position: [0.162, 0.150, 0],
parent: root
});
createPart('Trim_Front_Bottom', boxGeo(0.006, 0.006, 0.22), woodMahogany, {
position: [0.162, 0.080, 0],
parent: root
});
createPart('Trim_Front_Left', boxGeo(0.006, 0.076, 0.006), woodMahogany, {
position: [0.162, 0.115, -0.107],
parent: root
});
createPart('Trim_Front_Right', boxGeo(0.006, 0.076, 0.006), woodMahogany, {
position: [0.162, 0.115, 0.107],
parent: root
});
// Maker's Brass Plaque on Front
createPart('MakerPlaque', boxGeo(0.002, 0.028, 0.065), brassPolished, {
position: [0.164, 0.115, 0],
parent: root
});
createPart('PlaqueBorder', boxGeo(0.003, 0.030, 0.067), darkBrass, {
position: [0.163, 0.115, 0],
parent: root
});
// Plaque corner rivets
const plaqueRivets = [
[0.165, 0.125, -0.028],
[0.165, 0.125, 0.028],
[0.165, 0.105, -0.028],
[0.165, 0.105, 0.028]
];
plaqueRivets.forEach(([rx, ry, rz], idx) => {
createPart(`PlaqueRivet_${idx}`, cylinderXGeo(0.001, 0.001, 0.003, 6), steelPolished, {
position: [rx, ry, rz],
parent: root
});
});
// Back (-X) panel
createPart('Panel_Back_Backing', boxGeo(0.008, 0.072, 0.216), woodPanel, {
position: [-0.159, 0.115, 0],
parent: root
});
createPart('Trim_Back_Top', boxGeo(0.006, 0.006, 0.22), woodMahogany, {
position: [-0.162, 0.150, 0],
parent: root
});
createPart('Trim_Back_Bottom', boxGeo(0.006, 0.006, 0.22), woodMahogany, {
position: [-0.162, 0.080, 0],
parent: root
});
// Left (-Z) panel
createPart('Panel_Left_Backing', boxGeo(0.216, 0.072, 0.008), woodPanel, {
position: [0, 0.115, -0.159],
parent: root
});
createPart('Trim_Left_Top', boxGeo(0.22, 0.006, 0.006), woodMahogany, {
position: [0, 0.150, -0.162],
parent: root
});
createPart('Trim_Left_Bottom', boxGeo(0.22, 0.006, 0.006), woodMahogany, {
position: [0, 0.080, -0.162],
parent: root
});
// Right (+Z) panel (around crank)
createPart('Panel_Right_Backing', boxGeo(0.216, 0.072, 0.008), woodPanel, {
position: [0, 0.115, 0.159],
parent: root
});
createPart('Trim_Right_Top', boxGeo(0.22, 0.006, 0.006), woodMahogany, {
position: [0, 0.150, 0.162],
parent: root
});
createPart('Trim_Right_Bottom', boxGeo(0.22, 0.006, 0.006), woodMahogany, {
position: [0, 0.080, 0.162],
parent: root
});
// 1D. Top Cornice Moulding & Deck (Y = 0.165 to 0.190)
createPart('Cornice_Tier1', boxGeo(0.335, 0.012, 0.335), woodMahogany, {
position: [0, 0.171, 0],
parent: root
});
createPart('Cornice_Tier2', boxGeo(0.355, 0.013, 0.355), woodMahogany, {
position: [0, 0.183, 0],
parent: root
});
// ==========================================
// 2. CRANK HANDLE ON +Z SIDE
// ==========================================
// Escutcheon plate
createPart('CrankEscutcheon', cylinderZGeo(0.022, 0.022, 0.004, 14), brassPolished, {
position: [0.01, 0.115, 0.164],
parent: root
});
createPart('CrankEscutcheonCenter', cylinderZGeo(0.012, 0.012, 0.007, 10), darkBrass, {
position: [0.01, 0.115, 0.1665],
parent: root
});
// Escutcheon screws
const screwOffsets = [
[0.01, 0.129, 0.166],
[-0.002, 0.108, 0.166],
[0.022, 0.108, 0.166]
];
screwOffsets.forEach(([sx, sy, sz], idx) => {
createPart(`CrankScrew_${idx}`, cylinderZGeo(0.002, 0.002, 0.004, 6), steelPolished, {
position: [sx, sy, sz],
parent: root
});
});
// Steel shaft extending from cabinet
createPart('CrankShaft', cylinderZGeo(0.0055, 0.0055, 0.055, 8), steelPolished, {
position: [0.01, 0.115, 0.194],
parent: root
});
// Brass crank hub and arm
createPart('CrankHub', cylinderZGeo(0.009, 0.009, 0.010, 10), brassPolished, {
position: [0.01, 0.115, 0.222],
parent: root
});
createPart('CrankArm', boxGeo(0.010, 0.065, 0.008), brassPolished, {
position: [0.01, 0.082, 0.222],
parent: root
});
createPart('CrankElbowPin', cylinderZGeo(0.0045, 0.0045, 0.055, 8), steelPolished, {
position: [0.01, 0.052, 0.245],
parent: root
});
// Turned wooden handle grip
const gripProfile = [
[0.000, 0.000],
[0.008, 0.000],
[0.012, 0.010],
[0.014, 0.024],
[0.011, 0.038],
[0.007, 0.046],
[0.009, 0.050],
[0.000, 0.050]
];
const gripGeo = lathe(gripProfile, 12);
createPart('CrankHandleGrip', gripGeo, woodMahogany, {
position: [0.01, 0.052, 0.226],
rotation: [90, 0, 0],
parent: root
});
createPart('CrankGripCap', cylinderZGeo(0.008, 0.008, 0.003, 8), brassPolished, {
position: [0.01, 0.052, 0.276],
parent: root
});
// ==========================================
// 3. HINGED LID
// ==========================================
const lidHingePivot = createPivot('LidHinge', [-0.155, 0.190, 0], root);
lidHingePivot.rotation.z = (112 * Math.PI) / 180;
createPart('LidTopMoulding', boxGeo(0.355, 0.014, 0.355), woodMahogany, {
position: [0.177, 0.015, 0],
parent: lidHingePivot
});
createPart('LidBevelTier', boxGeo(0.335, 0.012, 0.335), woodMahogany, {
position: [0.177, 0.028, 0],
parent: lidHingePivot
});
createPart('LidBackPanel', boxGeo(0.28, 0.003, 0.28), woodPanel, {
position: [0.177, 0.035, 0],
parent: lidHingePivot
});
createPart('LidUnderPanel', boxGeo(0.28, 0.004, 0.28), woodPanel, {
position: [0.177, 0.006, 0],
parent: lidHingePivot
});
createPart('LidClasp', boxGeo(0.004, 0.014, 0.016), brassPolished, {
position: [0.355, 0.015, 0],
parent: lidHingePivot
});
[-0.09, 0.09].forEach((hz, idx) => {
createPart(`HingeBarrel_${idx}`, cylinderZGeo(0.004, 0.004, 0.024, 10), brassPolished, {
position: [-0.155, 0.190, hz],
parent: root
});
createPart(`HingeCabinetLeaf_${idx}`, boxGeo(0.016, 0.002, 0.020), brassPolished, {
position: [-0.147, 0.190, hz],
parent: root
});
});
// Slotted Brass Quadrant Stay Arm on left side (-Z)
const stayBottom = [-0.13, 0.192, -0.15];
const stayTop = [-0.215, 0.338, -0.15];
beamBetween('LidStayArm', stayBottom, stayTop, 0.0035, brassPolished, { parent: root });
createPart('LidStayKnob', cylinderZGeo(0.006, 0.006, 0.008, 10), darkBrass, {
position: [-0.172, 0.265, -0.15],
parent: root
});
createPart('LidStayFoot', boxGeo(0.014, 0.004, 0.012), brassPolished, {
position: [-0.13, 0.192, -0.15],
parent: root
});
createPart('LidStayLidBracket', boxGeo(0.012, 0.008, 0.012), brassPolished, {
position: [-0.215, 0.338, -0.15],
parent: root
});
// ==========================================
// 4. TURNTABLE & RECORD
// ==========================================
const ttPos = [0.01, 0.190, -0.04];
// Platter Body (Brass with bevelled edge)
createPart('PlatterRim', cylinderGeo(0.125, 0.125, 0.012, 28), brassPolished, {
position: [ttPos[0], ttPos[1] + 0.006, ttPos[2]],
parent: root
});
createPart('PlatterCollar', cylinderGeo(0.122, 0.125, 0.004, 28), darkBrass, {
position: [ttPos[0], ttPos[1] + 0.014, ttPos[2]],
parent: root
});
// Velvet Felt Mat (Rich Emerald Green)
createPart('TurntableFelt', cylinderGeo(0.122, 0.122, 0.003, 28), feltGreen, {
position: [ttPos[0], ttPos[1] + 0.017, ttPos[2]],
parent: root
});
// 78 RPM Shellac Record
createPart('RecordBody', cylinderGeo(0.116, 0.116, 0.0025, 28), recordVinyl, {
position: [ttPos[0], ttPos[1] + 0.0195, ttPos[2]],
parent: root
});
// Concentric Grooves (Specular ring highlights)
const grooveRadii = [0.070, 0.096];
grooveRadii.forEach((gr, idx) => {
createPart(`RecordGroove_${idx}`, torusGeo(gr, 0.001, 6, 24), recordGroove, {
position: [ttPos[0], ttPos[1] + 0.021, ttPos[2]],
rotation: [90, 0, 0],
parent: root
});
});
// Center Record Label (Crimson & Gold border)
createPart('RecordLabel', cylinderGeo(0.040, 0.040, 0.003, 24), recordLabel, {
position: [ttPos[0], ttPos[1] + 0.0205, ttPos[2]],
parent: root
});
createPart('RecordLabelRing', torusGeo(0.036, 0.0008, 6, 24), brassPolished, {
position: [ttPos[0], ttPos[1] + 0.0225, ttPos[2]],
rotation: [90, 0, 0],
parent: root
});
// Polished Steel Center Spindle Pin
createPart('Spindle', cylinderGeo(0.0036, 0.0036, 0.022, 12), steelPolished, {
position: [ttPos[0], ttPos[1] + 0.028, ttPos[2]],
parent: root
});
// Deck Controls
// Speed regulator plate & lever
createPart('SpeedPlate', boxGeo(0.036, 0.002, 0.026), brassPolished, {
position: [0.11, 0.191, -0.12],
parent: root
});
beamBetween('SpeedLever', [0.11, 0.192, -0.12], [0.12, 0.205, -0.12], 0.002, steelPolished, { parent: root });
createPart('SpeedKnob', sphereGeo(0.004, 8, 6), darkBrass, {
position: [0.12, 0.206, -0.12],
parent: root
});
// Platter Brake switch
createPart('BrakeHousing', boxGeo(0.016, 0.008, 0.012), brassPolished, {
position: [0.08, 0.194, 0.06],
parent: root
});
beamBetween('BrakeLever', [0.08, 0.198, 0.06], [0.06, 0.208, 0.06], 0.002, steelPolished, { parent: root });
createPart('BrakePad', boxGeo(0.006, 0.008, 0.008), feltGreen, {
position: [0.07, 0.198, 0.05],
parent: root
});
// Needle Cup on deck with spare needles
createPart('NeedleCupRim', torusGeo(0.016, 0.003, 8, 16), brassPolished, {
position: [0.12, 0.193, -0.03],
rotation: [90, 0, 0],
parent: root
});
createPart('NeedleCupWell', cylinderGeo(0.016, 0.016, 0.004, 16), darkBrass, {
position: [0.12, 0.191, -0.03],
parent: root
});
beamBetween('SpareNeedle1', [0.115, 0.193, -0.035], [0.125, 0.194, -0.025], 0.0008, steelPolished, { parent: root });
beamBetween('SpareNeedle2', [0.125, 0.193, -0.035], [0.115, 0.194, -0.025], 0.0008, steelPolished, { parent: root });
// ==========================================
// 5. BACK BRACKET & SUPPORT
// ==========================================
const bracketPos = [-0.13, 0.190, 0.05];
createPart('BracketBasePlate', boxGeo(0.055, 0.006, 0.065), darkBrass, {
position: [bracketPos[0], bracketPos[1] + 0.003, bracketPos[2]],
parent: root
});
const boltDeltas = [
[0.02, 0.022],
[-0.02, 0.022],
[0.02, -0.022],
[-0.02, -0.022]
];
boltDeltas.forEach(([bx, bz], idx) => {
createPart(`BracketBolt_${idx}`, cylinderYGeo(0.0025, 0.0025, 0.005, 6), steelPolished, {
position: [bracketPos[0] + bx, bracketPos[1] + 0.008, bracketPos[2] + bz],
parent: root
});
});
const pillarProfile = [
[0.000, 0.000],
[0.022, 0.000],
[0.022, 0.008],
[0.015, 0.016],
[0.013, 0.065],
[0.017, 0.075],
[0.020, 0.085],
[0.000, 0.085]
];
const pillarGeo = lathe(pillarProfile, 14);
createPart('BracketPillar', pillarGeo, brassPolished, {
position: [bracketPos[0], bracketPos[1] + 0.006, bracketPos[2]],
parent: root
});
createPart('BracketArmBody', boxGeo(0.045, 0.022, 0.035), darkBrass, {
position: [bracketPos[0] + 0.015, bracketPos[1] + 0.090, bracketPos[2]],
parent: root
});
createPart('BracketSocketRing', torusGeo(0.019, 0.003, 8, 16), brassPolished, {
position: [bracketPos[0], bracketPos[1] + 0.095, bracketPos[2]],
rotation: [90, 0, 0],
parent: root
});
// ==========================================
// 6. PIVOTING TONE ARM & SOUND BOX
// ==========================================
const armPivotPos = [bracketPos[0] + 0.035, bracketPos[1] + 0.085, bracketPos[2] - 0.025];
createPart('ToneArmSwivelBase', cylinderGeo(0.014, 0.014, 0.020, 14), brassPolished, {
position: armPivotPos,
parent: root
});
createPart('ToneArmGimbalRing', torusGeo(0.015, 0.003, 8, 16), darkBrass, {
position: [armPivotPos[0], armPivotPos[1] + 0.012, armPivotPos[2]],
parent: root
});
createPart('ToneArmCounterweight', cylinderXGeo(0.012, 0.012, 0.025, 12), brassPolished, {
position: [armPivotPos[0] - 0.025, armPivotPos[1] + 0.012, armPivotPos[2]],
parent: root
});
// Tone Arm curved tube reaching over to record
const soundBoxPos = [armPivotPos[0] + 0.205, 0.236, armPivotPos[2] - 0.015];
const toneArmPoints = [
[armPivotPos[0], armPivotPos[1] + 0.012, armPivotPos[2]],
[armPivotPos[0] + 0.045, armPivotPos[1] + 0.008, armPivotPos[2] - 0.018],
[armPivotPos[0] + 0.110, armPivotPos[1] - 0.005, armPivotPos[2] - 0.025],
[armPivotPos[0] + 0.165, armPivotPos[1] - 0.018, armPivotPos[2] - 0.025],
[soundBoxPos[0] - 0.012, soundBoxPos[1] + 0.005, soundBoxPos[2] - 0.006]
];
const toneArmGeo = pipeAlongPath(toneArmPoints, 0.0065, {
bendRadius: 0.025,
tubularSegments: 16,
radialSegments: 10
});
createPart('ToneArmTube', toneArmGeo, brassPolished, { parent: root });
// Tone arm elbow connecting into back of sound box
createPart('ToneArmSoundBoxFerrule', cylinderGeo(0.009, 0.009, 0.012, 12), darkBrass, {
position: [soundBoxPos[0] - 0.008, soundBoxPos[1] + 0.003, soundBoxPos[2] - 0.004],
parent: root
});
// Sound Box (Reproducer / Exhibition soundbox)
// Rotated so mica diaphragm faces forward-right (+X, +Z) and stylus chuck points DOWN (-Y)
const soundBoxPivot = createPivot('SoundBoxPivot', soundBoxPos, root);
soundBoxPivot.rotation.x = (20 * Math.PI) / 180;
soundBoxPivot.rotation.y = (25 * Math.PI) / 180;
soundBoxPivot.rotation.z = (-75 * Math.PI) / 180;
// Sound box casing
createPart('SoundBoxCase', cylinderGeo(0.025, 0.025, 0.010, 20), brassPolished, {
position: [0, 0, 0],
parent: soundBoxPivot
});
createPart('SoundBoxBackCap', cylinderGeo(0.021, 0.023, 0.004, 20), darkBrass, {
position: [0, -0.006, 0],
parent: soundBoxPivot
});
// Front bezel retaining ring
createPart('SoundBoxBezel', torusGeo(0.024, 0.0025, 8, 20), brassPolished, {
position: [0, 0.005, 0],
rotation: [90, 0, 0],
parent: soundBoxPivot
});
// 6 Perimeter bezel screws
for (let si = 0; si < 6; si++) {
const sAng = (si * Math.PI * 2) / 6;
const sx = Math.cos(sAng) * 0.023;
const sz = Math.sin(sAng) * 0.023;
createPart(`BezelScrew_${si}`, cylinderYGeo(0.0012, 0.0012, 0.003, 6), steelPolished, {
position: [sx, 0.007, sz],
parent: soundBoxPivot
});
}
// Mica Diaphragm (translucent / pearlescent disc)
createPart('MicaDiaphragm', cylinderGeo(0.021, 0.021, 0.001, 20), mica, {
position: [0, 0.0025, 0],
parent: soundBoxPivot
});
// Center spider / needle bar mounting dot
createPart('DiaphragmSpider', sphereGeo(0.0025, 6, 6), darkBrass, {
position: [0, 0.0055, 0],
parent: soundBoxPivot
});
// Needle bar extending from lower trunnions to center
beamBetween('NeedleBar', [0, 0.0055, 0], [0.022, 0.004, 0], 0.0012, steelPolished, {
parent: soundBoxPivot
});
// Stylus chuck boss at bottom (local +X)
createPart('StylusChuck', boxGeo(0.007, 0.008, 0.006), darkBrass, {
position: [0.024, 0.002, 0],
parent: soundBoxPivot
});
// Knurled thumbscrew on stylus chuck
createPart('StylusThumbScrew', cylinderGeo(0.0025, 0.0025, 0.008, 8), brassPolished, {
position: [0.024, 0.002, 0.006],
rotation: [90, 0, 0],
parent: soundBoxPivot
});
// Steel Needle pointing down to rest on the record groove
beamBetween('StylusNeedle', [0.024, 0.002, 0], [0.033, 0.002, 0], 0.0012, steelPolished, {
parent: soundBoxPivot
});
// ==========================================
// 7. CURVED ELBOW & MORNING-GLORY HORN
// ==========================================
// 7A. Smooth Curved Brass Elbow
const elbowPath = [
[bracketPos[0], bracketPos[1] + 0.085, bracketPos[2]],
[bracketPos[0], bracketPos[1] + 0.155, bracketPos[2]],
[bracketPos[0] + 0.025, bracketPos[1] + 0.205, bracketPos[2]],
[bracketPos[0] + 0.065, bracketPos[1] + 0.230, bracketPos[2]],
[bracketPos[0] + 0.110, bracketPos[1] + 0.243, bracketPos[2]]
];
const elbowGeo = pipeAlongPath(elbowPath, 0.016, {
bendRadius: 0.035,
tubularSegments: 20,
radialSegments: 12
});
createPart('ElbowPipe', elbowGeo, brassPolished, { parent: root });
// Elbow collar at base
createPart('ElbowBaseCollar', cylinderGeo(0.021, 0.021, 0.014, 14), darkBrass, {
position: [bracketPos[0], bracketPos[1] + 0.095, bracketPos[2]],
parent: root
});
// Elbow connection ferrule at horn mouth
const hornThroatPos = [bracketPos[0] + 0.110, bracketPos[1] + 0.243, bracketPos[2]];
createPart('HornCouplingFerrule', cylinderGeo(0.022, 0.022, 0.016, 14), darkBrass, {
position: hornThroatPos,
rotation: [0, 0, -74],
parent: root
});
// 7B. Large Brass Morning-Glory Horn (12 Fluted Tapering Petals)
const hornLength = 0.40;
const rThroat = 0.018;
const rBell = 0.215;
const wall = 0.0022;
const hornSteps = 16;
const outerCurve = [];
const innerCurve = [];
for (let i = 0; i <= hornSteps; i++) {
const u = i / hornSteps;
const y = u * hornLength;
const r = rThroat + 0.014 * u + (rBell - rThroat - 0.014) * Math.pow(u, 3.4);
outerCurve.push([r + wall * 0.5, y]);
innerCurve.push([Math.max(0.003, r - wall * 0.5), y]);
}
const rOuterRim = outerCurve[outerCurve.length - 1][0];
const rInnerRim = innerCurve[innerCurve.length - 1][0];
const rMidRim = (rOuterRim + rInnerRim) * 0.5;
const rimProfile = [
[rOuterRim, hornLength],
[rMidRim + 0.003, hornLength + 0.004],
[rInnerRim, hornLength]
];
const hornProfile = [
...outerCurve,
...rimProfile,
...innerCurve.slice().reverse(),
outerCurve[0]
];
const hornGeo = lathe(hornProfile, 12);
const hornPivot = createPivot('HornPivot', hornThroatPos, root);
hornPivot.rotation.z = (-74 * Math.PI) / 180;
createPart('HornBellBody', hornGeo, brassPolished, {
position: [0, 0, 0],
parent: hornPivot
});
// 12 Seam Ribs running along the 12 petal folds
for (let pi = 0; pi < 12; pi++) {
const angle = (pi * Math.PI * 2) / 12;
const cosA = Math.cos(angle);
const sinA = Math.sin(angle);
const ribPoints = [];
const ribSteps = 8;
for (let ri = 1; ri <= ribSteps; ri++) {
const u = ri / ribSteps;
const y = u * hornLength;
const r = rThroat + 0.014 * u + (rBell - rThroat - 0.014) * Math.pow(u, 3.4) + wall * 0.6;
ribPoints.push([r * cosA, y, r * sinA]);
}
const ribGeo = pipeAlongPath(ribPoints, 0.0016, {
bendRadius: 0.02,
tubularSegments: 8,
radialSegments: 5
});
createPart(`HornPetalRib_${pi}`, ribGeo, darkBrass, {
parent: hornPivot
});
const nextAngle = ((pi + 1) * Math.PI * 2) / 12;
const midAngle = (angle + nextAngle) * 0.5;
const rimR = rBell + 0.003;
createPart(`PetalCrest_${pi}`, sphereGeo(0.004, 6, 6), brassPolished, {
position: [rimR * Math.cos(midAngle), hornLength + 0.003, rimR * Math.sin(midAngle)],
parent: hornPivot
});
}
// 7C. Slender Support Brace for the Heavy Horn
const braceCollarU = 0.35;
const braceCollarY = braceCollarU * hornLength;
const braceCollarR = rThroat + 0.014 * braceCollarU + (rBell - rThroat - 0.014) * Math.pow(braceCollarU, 3.4);
createPart('HornSupportCollar', torusGeo(braceCollarR + 0.002, 0.0025, 8, 18), darkBrass, {
position: [0, braceCollarY, 0],
rotation: [90, 0, 0],
parent: hornPivot
});
createPart('CollarLug', boxGeo(0.008, 0.010, 0.010), darkBrass, {
position: [0, braceCollarY, -(braceCollarR + 0.003)],
parent: hornPivot
});
const collarWorldPos = [
hornThroatPos[0] + braceCollarY * Math.sin((74 * Math.PI) / 180),
hornThroatPos[1] + braceCollarY * Math.cos((74 * Math.PI) / 180),
hornThroatPos[2] - (braceCollarR + 0.003)
];
// Slender Brace Rod from the back bracket post up to the horn collar
const braceBasePos = [bracketPos[0] + 0.01, bracketPos[1] + 0.080, bracketPos[2] - 0.015];
beamBetween('HornSupportBrace', braceBasePos, collarWorldPos, 0.0035, brassPolished, {
parent: root
});
createPart('BraceTurnbuckle', cylinderGeo(0.005, 0.005, 0.022, 8), darkBrass, {
position: [
(braceBasePos[0] + collarWorldPos[0]) * 0.5,
(braceBasePos[1] + collarWorldPos[1]) * 0.5,
(braceBasePos[2] + collarWorldPos[2]) * 0.5
],
parent: root
});
createPart('BraceAnchorFoot', boxGeo(0.012, 0.016, 0.014), darkBrass, {
position: braceBasePos,
parent: root
});
return root;
}Scroll code horizontally
Brief and retained revisions
No brief or earlier revisions are recorded. The source download contains the version built for this page.
