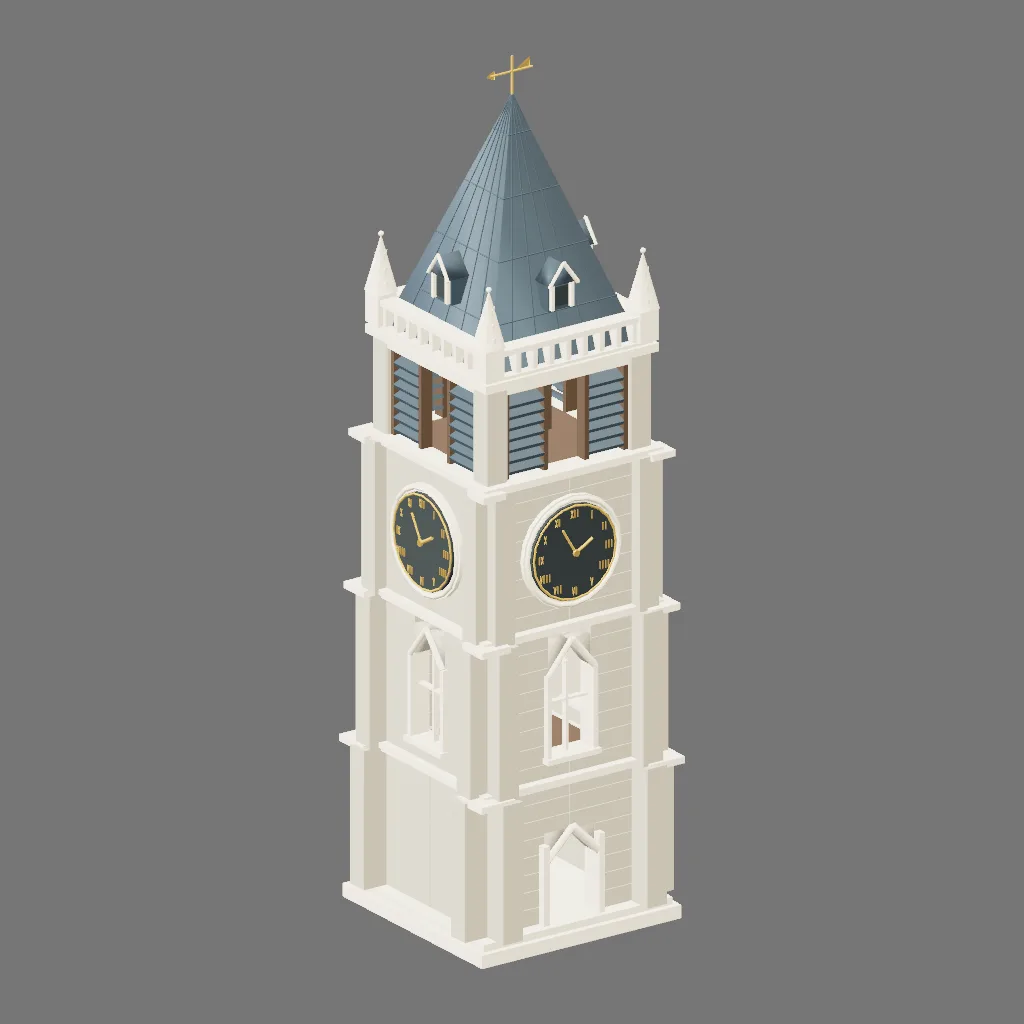

Historical gallery render of Clock tower; see the poster provenance below.

Drag to orbit after opening. The model starts stationary.

For your engine. The download is a standard glTF 2.0 binary (GLB) with PBR metallic-roughness materials. glTF stores materials, not lighting or tone mapping, so your engine decides how they read. This 3D view tone-maps with Review Neutral, the Khronos PBR Neutral construction with a smaller glare offset (0.015 instead of 0.04), at exposure 0.9. Its Tone mapping control also shows ACES and Linear, for comparison.

Build measurements

Triangles
11,664
Estimated draws
739
Materials
7
Textures
0
Animation clips
0
Bounds X × Y × Z
7.14 × 25.6 × 7.14 m
Build warnings
0

Measurements come from this build.

Download this build

Runtime: 165,312 bytes. Original: 165,088 bytes.

These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.

Runtime provenance metadata
SHA-256 download hashes
Runtime GLB
25b711c8499ee9d27c14a94807c0675c19e4c0e1e4ca8ba6407b6cd8e44aadc9
Original GLB
225b911bd66480033aff4413f7810df4ce4ee80f391286e47908fc1b7230dacf
Source
641fe2de7491061214b88d4bc06a824dcfc0e582f408f6af8986bd6498f0e731

The example source is part of the Kiln repository. Repository licence: MIT.

These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.

Recorded authorship

GPT-6 Astra through Codex

Source-header credit

Source access
Source header declares no repository implementation or finished examples supplied
Inherited context
Not independently recorded; source-header declarations only
Starting example
None supplied, according to source header
Human input
Header declares no hand-authored source; other intervention not recorded
Authoring review
Six-view review declared; renderer fidelity not recorded

Gallery GPU render of this exact source. Source, artifact, image hashes and camera settings are recorded alongside the poster; the artifact hash names the GLB bytes the image was rendered from, which the downloadable rebuild reproduces byte for byte only on the platform that recorded it.

Poster camera and render record

The source behind this build

clock-tower.kiln.js
// Authored by: gpt-6-astra, via codex.
//
// Written by the model itself through the Kiln MCP tools: it wrote the
// program, rendered it, looked at its own six-view contact sheet, and
// revised. Not a line of it is hand-authored.
//
// Dispatched into a clean directory containing only the brief and the Kiln
// skills, with no access to this repository or to any finished example.

const meta = { name: 'ClockTower', category: 'architecture' };
function build() {
  const root=createRoot('ClockTower');
  const stone=gameMaterial(0x9b927f,{roughness:.95}), trim=gameMaterial(0xc7baa0,{roughness:.85}), shadow=gameMaterial(0x242a29), lead=gameMaterial(0x465359,{metalness:.55,roughness:.65}), gold=gameMaterial(0xc7a04e,{metalness:.75,roughness:.35}), wood=gameMaterial(0x493726), bronze=gameMaterial(0x917044,{metalness:.7,roughness:.5});
  let id=0;
  function part(n,g,m,pos,p=root,rot=[0,0,0]){g=g.clone();g.applyMatrix4(new THREE.Matrix4().makeRotationFromEuler(new THREE.Euler(rot[0]*Math.PI/180,rot[1]*Math.PI/180,rot[2]*Math.PI/180)));g.computeBoundingBox();return createPart(n+'_'+id++,g,m,{position:pos,parent:p});}
  function box(n,w,h,d,x,y,z,m=stone,p=root,rot=[0,0,0]){return part(n,boxGeo(w,h,d),m,[x,y,z],p,rot);}
  function beam(n,a,b,r,m,p=root){return beamBetween(n+'_'+id++,a,b,r,m,{segments:4,parent:p});}
  function group(n,p=root){const g=createRoot(n);p.add(g);return g;}
  function prism(n,pts,x,depth,m,p){
    const v=[],idx=[],N=pts.length;
    for(const xx of [x-depth/2,x+depth/2])for(const q of pts)v.push(xx,q[0],q[1]);
    for(let i=1;i<N-1;i++){idx.push(0,i+1,i,N,N+i,N+i+1);}
    for(let i=0;i<N;i++){const j=(i+1)%N;idx.push(i,j,N+j,i,N+j,N+i);}
    const g=new THREE.BufferGeometry();g.setAttribute('position',new THREE.Float32BufferAttribute(v,3));g.setIndex(idx);g.computeVertexNormals();return part(n,g,m,[0,0,0],p);
  }
  box('GroundPlinth',6.8,.4,6.8,0,.2,0,trim);
  box('BaseMoulding',6.45,.22,6.45,0,.51,0,trim);
  const stages=[{base:.62,height:4.18},{base:4.8,height:4.6},{base:9.4,height:4.6}];
  for(let f=0;f<4;f++){
    const face=group('Facade_'+f);face.rotation.y=f*Math.PI/2;
    for(let s=0;s<3;s++){
      const st=stages[s], rows=8, rh=st.height/rows;
      for(let r=0;r<rows;r++){
        const low=st.base+r*rh, high=low+rh;
        let gap=0;
        if(s===1 && high>5.65 && low<8.9)gap=.72;
        if(s===0 && f===0 && low<3.2)gap=.85;
        const ranges=gap?[[-2.8,-gap],[gap,2.8]]:[[-2.8,0],[0,2.8]];
        for(const range of ranges){const len=range[1]-range[0];for(let b=0;b<1;b++)box('Ashlar',.48,rh-.016,len-.015,2.56,low+rh/2,range[0]+len*(b+.5),stone,face);}
      }
      box('CourseLower',.65,.12,5.95,2.66,st.base+st.height-.05,0,trim,face);
      box('CourseDrip',.77,.15,6.05,2.68,st.base+st.height+.075,0,trim,face);
    }
    // True void through the middle stage, closed to a pointed lancet by spandrels.
    prism('LancetSpandrelL',[[8.02,-.72],[8.95,-.72],[8.95,0]],2.56,.48,stone,face);
    prism('LancetSpandrelR',[[8.02,.72],[8.95,0],[8.95,.72]],2.56,.48,stone,face);
    for(const z of [-.79,.79])box('LancetJamb',.65,2.55,.15,2.64,6.76,z,trim,face);
    for(const side of [-1,1])beam('PointedArchivolt',[2.92,8.04,side*.79],[2.92,9.02,0],.105,trim,face);
    box('LancetSill',.83,.16,1.82,2.66,5.5,0,trim,face);
    box('StoneMullion',.18,2.73,.085,2.6,6.91,0,trim,face);
    box('Transom',.18,.07,1.4,2.6,7.13,0,trim,face);
    if(f===0){
      for(const side of [-1,1])box('DoorJamb',.7,2.55,.2,2.7,1.72,side*.94,trim,face);
      prism('DoorHeadLeft',[[2.4,-.85],[3.3,-.85],[3.3,0]],2.56,.48,stone,face);
      prism('DoorHeadRight',[[2.4,.85],[3.3,0],[3.3,.85]],2.56,.48,stone,face);
      for(const side of [-1,1])beam('DoorArch',[2.95,2.43,side*.95],[2.95,3.38,0],.13,trim,face);
    }
    const clock=group('Clock_'+f,face);clock.position.set(0,11.65,0);
    part('ClockStoneBed',cylinderXGeo(1.68,1.68,.18,20),trim,[2.85,0,0],clock);
    part('ClockDial',cylinderXGeo(1.45,1.45,.12,20),shadow,[2.98,0,0],clock);
    part('OuterMoulding',torusGeo(1.58,.075,4,20),trim,[2.99,0,0],clock,[0,90,0]);
    part('GiltRim',torusGeo(1.4,.035,4,20),gold,[3.065,0,0],clock,[0,90,0]);
    const nums=['XII','I','II','III','IIII','V','VI','VII','VIII','IX','X','XI'];
    for(let k=0;k<12;k++){
      const a=k*Math.PI/6, cy=1.16*Math.cos(a),cz=-1.16*Math.sin(a),str=nums[k];
      for(let j=0;j<str.length;j++){
        const z=cz-(j-(str.length-1)/2)*.095;
        if(str[j]==='I')box('RomanI',.03,.23,.032,3.071,cy,z,gold,clock);
        if(str[j]==='V'){beam('RomanV',[3.071,cy+.115,z-.035],[3.071,cy-.115,z],.016,gold,clock);beam('RomanV',[3.071,cy-.115,z],[3.071,cy+.115,z+.035],.016,gold,clock);}
        if(str[j]==='X'){beam('RomanX',[3.071,cy+.115,z-.035],[3.071,cy-.115,z+.035],.016,gold,clock);beam('RomanX',[3.071,cy-.115,z-.035],[3.071,cy+.115,z+.035],.016,gold,clock);}
      }
    }
    beam('MinuteHand',[3.11,0,0],[3.11,.76,.44],.037,gold,clock);
    beam('HourHand',[3.12,0,0],[3.12,.32,-.56],.052,gold,clock);
    part('HandBoss',cylinderXGeo(.1,.1,.07,12),gold,[3.14,0,0],clock);
    // Open belfry: side louvre banks leave the hanging bell visible in the centre.
    for(const z of [-2.45,2.45])box('BelfryPier',.65,3.05,.7,2.45,15.55,z,stone,face);
    box('BelfryArchitrave',.65,.3,4.4,2.45,16.9,0,trim,face);
    for(const side of [-1,1])for(const edge of [.7,2.03])box('LouvreFrameStile',.38,2.65,.15,2.47,15.4,side*edge,wood,face);
    for(const side of [-1,1])for(let j=0;j<7;j++)box('Louvre',.42,.12,1.22,2.47,14.4+j*.33,side*1.35,lead,face,[0,0,-24]);
    box('ParapetBase',.48,.18,5.65,2.6,17.25,0,trim,face);
    box('ParapetCap',.55,.17,5.75,2.6,18.05,0,trim,face);
    for(let j=-4;j<=4;j++)box('PiercedParapetUpright',.35,.7,.16,2.6,17.66,j*.57,trim,face);
    // Lucarne seated on the sloping lead roof.
    box('LucarneCheek',.78,.82, .85,1.98,19.15,0,lead,face);
    box('LucarneOpening',.045,.59,.5,2.39,19.16,0,shadow,face);
    for(const z of [-.33,.33])box('LucarneJamb',.14,.75,.1,2.42,19.16,z,trim,face);
    prism('LucarneGable',[[19.53,-.49],[20.15,0],[19.53,.49]],2.15,.7,lead,face);
    for(const side of [-1,1])beam('LucarneVerge',[2.52,19.5,side*.49],[2.52,20.17,0],.065,trim,face);
  }
  for(let s=0;s<3;s++)for(const x of [-1,1])for(const z of [-1,1]){
    const st=stages[s], width=1.05-s*.19, y=st.base+st.height/2;
    box('ClaspButtressX',width,st.height,.67,x*(2.8+width/2-.28),y,z*2.46);
    box('ClaspButtressZ',.67,st.height,width,x*2.46,y,z*(2.8+width/2-.28));
    box('ButtressWeathering',width+.12,.2,width+.12,x*2.89,st.base+st.height-.03,z*2.89,trim);
  }
  box('GroundFloor',5.15,.14,5.15,0,.47,0,shadow);
  for(const y of [4.78,9.38,14.05])box('FloorDeck',5.1,.16,5.1,0,y,0,wood);
  const bell=group('BellAndTimberFrame');
  for(const z of [-1.15,1.15])box('BellFramePost',.24,2.6,.25,0,15.43,z,wood,bell);
  box('BellHeadstock',.42,.32,2.8,0,16.52,0,wood,bell);
  for(const z of [-1,1])beam('TimberBrace',[0,15.45,z*1.15],[0,16.36,z*.45],.1,wood,bell);
  part('BronzeBell',lathe([[.66,0],[.81,.08],[.8,.19],[.57,.34],[.4,.77],[.33,1.08],[.18,1.19],[.12,1.2],[.12,1.07],[.27,.99],[.33,.69],[.49,.26],[.68,.13],[.66,0]],20),bronze,[0,14.78,0],bell);
  beam('BellHanger',[0,15.92,0],[0,16.53,0],.07,bronze,bell);
  beam('ClapperStem',[0,15.38,0],[0,14.72,0],.045,shadow,bell);
  part('Clapper',sphereGeo(.12,8,6),bronze,[0,14.71,0],bell);
  box('RoofCornice',5.9,.25,5.9,0,17.12,0,trim);
  const roof=group('Roof');
  part('LeadSpire',coneGeo(3.65,7.2,4),lead,[0,20.85,0],roof,[0,45,0]);
  for(let f=0;f<4;f++){
    const seams=group('LeadSeams_'+f,roof);seams.rotation.y=f*Math.PI/2;
    for(const z of [-1.8,-.9,0,.9,1.8])beam('StandingLeadSeam',[2.585,17.28,z],[.025,24.43,z*.009],.022,lead,seams);
    for(const y of [18.6,20.2,21.8,23.4]){const w=(24.45-y)*2.581/7.2;beam('LeadPanelJoint',[w+.014,y,-w],[w+.014,y,w],.018,lead,seams);}
  }
  for(const x of [-1,1])for(const z of [-1,1]){
    box('PinnaclePedestal',.63,.95,.63,x*2.63,17.81,z*2.63,trim);
    part('PinnacleSpire',coneGeo(.48,1.7,4),trim,[x*2.63,19.12,z*2.63],root,[0,45,0]);
    for(let level=0;level<3;level++)for(const side of [-1,1]){
      const y=18.57+level*.4,offset=.28-level*.07;
      part('PinnacleCrocket',coneGeo(.115,.25,4),trim,[x*2.63+side*offset,y,z*2.63],root,[0,0,-side*35]);
      part('PinnacleCrocket',coneGeo(.115,.25,4),trim,[x*2.63,y,z*2.63+side*offset],root,[side*35,0,0]);
    }
    part('PinnacleFinial',sphereGeo(.085,6,4),trim,[x*2.63,19.99,z*2.63]);
  }
  beam('VaneMast',[0,24.35,0],[0,25.6,0],.04,gold);
  beam('VaneArrow',[0,25.12,-.7],[0,25.12,.75],.035,gold);
  prism('VaneFlag',[[25.12,-.12],[25.42,-.6],[25.12,-.6]],0,.05,gold,root);
  prism('ArrowHead',[[25.12,.87],[25.25,.6],[24.99,.6]],0,.05,gold,root);
  return root;
}

Brief and retained revisions

No brief or earlier revisions are recorded. The source download contains the version built for this page.
