Small deciduous tree with a branching brown trunk and a faceted green crown.

Shapes & Seasons Farm · Nature

Faceted deciduous tree, three-quarter view on a neutral backdrop

Drag to orbit after opening. The model starts stationary.

Revision r_6d5dd832c32b4d8682942980d02cde1b

Metres · +X forward · +Y up · +Z right

The poster is this revision’s sealed GLB rendered under the Kiln review lighting rig (review-neutral-v1) on the neutral backdrop, with nothing retouched. The 3D view applies the same rig (review-neutral-v1): its light directions and strengths, exposure, tone mapping and backdrop.

For your engine. The download is a standard glTF 2.0 binary (GLB) with PBR metallic-roughness materials. glTF stores materials, not lighting or tone mapping, so your engine decides how they read. This 3D view tone-maps with Review Neutral, the Khronos PBR Neutral construction with a smaller glare offset (0.015 instead of 0.04), at exposure 0.9. Its Tone mapping control also shows ACES and Linear, for comparison.

Triangles
760
Meshes drawn
4
Materials
4
Bounds · X × Y × Z
3.18 × 4.47 × 3.62 m
Animation clips
None

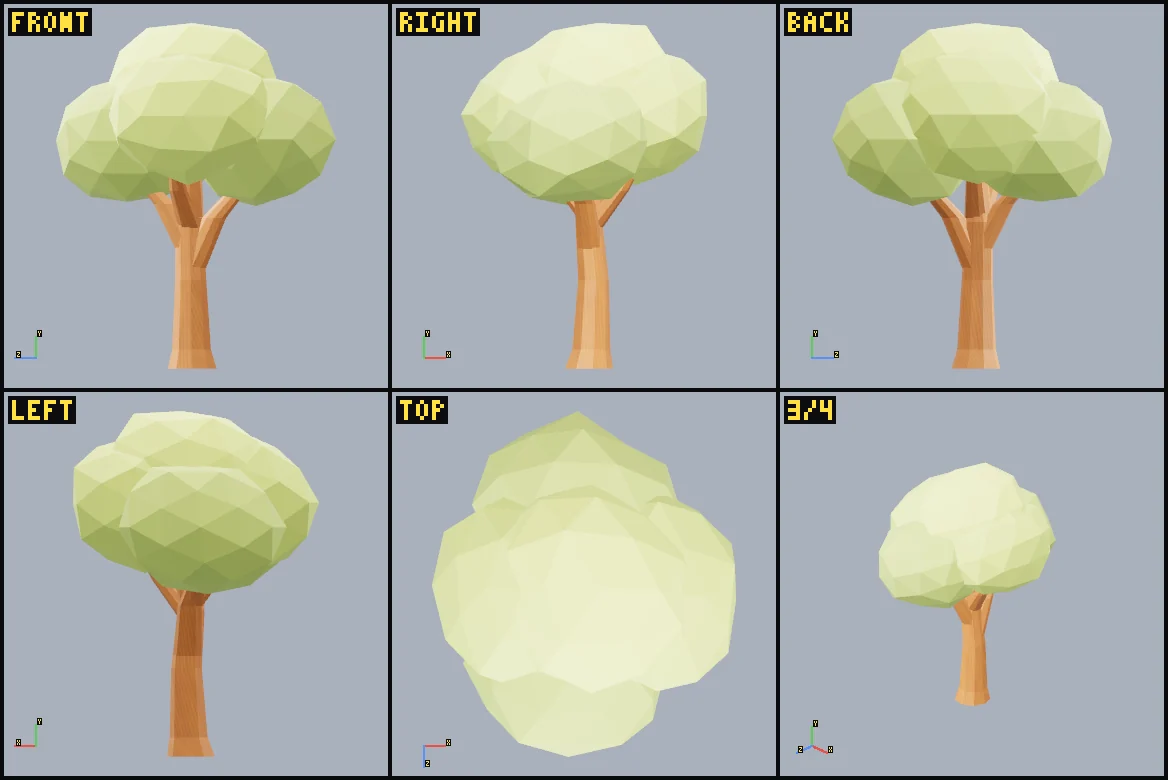

Review views

Six views of this revision, rendered on the GPU from its source.

Six rendered review views of faceted-tree.
Material-faithful GPU source review views for r_6d5dd832c32b4d8682942980d02cde1b.

Read the actual source.

Download .kiln.js

This is the source extracted from the sealed editable archive for the displayed revision.

faceted-tree.kiln.js
const meta={name:'Faceted tree',role:'prop'};

function merge(gs) {
 const p=[], n=[], uv=[];
 for (const source of gs) {
  const g=source.index?source.toNonIndexed():source;
  g.computeVertexNormals();
  const pa=g.getAttribute('position'),na=g.getAttribute('normal'),ua=g.getAttribute('uv');
  for(let i=0;i<pa.count;i++){p.push(pa.getX(i),pa.getY(i),pa.getZ(i));n.push(na.getX(i),na.getY(i),na.getZ(i));uv.push(ua?ua.getX(i):0,ua?ua.getY(i):0);}
 }
 const out=new THREE.BufferGeometry();
 out.setAttribute('position',new THREE.Float32BufferAttribute(p,3));
 out.setAttribute('normal',new THREE.Float32BufferAttribute(n,3));
 out.setAttribute('uv',new THREE.Float32BufferAttribute(uv,2));
 return out;
}
function boulder(c,s,seed,floor) {
 const g=new THREE.IcosahedronGeometry(1,1),p=g.getAttribute('position');
 for(let i=0;i<p.count;i++){
  const x=p.getX(i),y=p.getY(i),z=p.getZ(i);
  const r=1+0.07*Math.sin(x*4+seed)*Math.cos(z*5-seed)+0.035*Math.sin(y*7+seed);
  p.setXYZ(i,c[0]+s[0]*(x*r+0.09*y),Math.max(floor,c[1]+s[1]*y*r),c[2]+s[2]*(z*r+0.06*x));
 }
 g.computeVertexNormals(); return g;
}

function limb(stations) {
 const p=[],uv=[],ix=[],N=9;
 stations.forEach((v,j)=>{for(let i=0;i<=N;i++){const a=2*Math.PI*i/N;p.push(v[0]+v[3]*Math.cos(a),v[1],v[2]+v[3]*Math.sin(a));uv.push(i/N*2*Math.PI*v[3]/0.6,v[1]/1.2);}});
 for(let j=0;j<stations.length-1;j++)for(let i=0;i<N;i++){const a=j*(N+1)+i,b=a+N+1;ix.push(a,b,a+1,a+1,b,b+1);}
 const bot=p.length/3;p.push(...stations[0].slice(0,3));uv.push(.5,.5);
 const top=p.length/3;p.push(...stations[stations.length-1].slice(0,3));uv.push(.5,.5);
 for(let i=0;i<N;i++){ix.push(bot,i,i+1);const a=(stations.length-1)*(N+1)+i;ix.push(top,a+1,a);}
 const g=new THREE.BufferGeometry();g.setAttribute('position',new THREE.Float32BufferAttribute(p,3));g.setAttribute('uv',new THREE.Float32BufferAttribute(uv,2));g.setIndex(ix);return g;
}
async function build(){
 const root=createRoot('FacetedTree');
 const wood=await compilePortableMaterialSpecV2({schemaVersion:2,model:'pbrMetallicRoughness',name:'Farm honey wood (subdued grain derivative)',baseColor:16777215,roughness:1,metalness:0,emissiveIntensity:1,alphaMode:'opaque',alphaCutoff:.5,doubleSided:false,textures:{baseColor:{kind:'resource',resourceId:'kiln.library.710f9ab0183deb86923b3c398286f9cbcb0eaea7ec50657a72fc83c2bd3c38cd.base-color'},normal:{kind:'resource',resourceId:'kiln.library.710f9ab0183deb86923b3c398286f9cbcb0eaea7ec50657a72fc83c2bd3c38cd.normal'},metallicRoughness:{kind:'resource',resourceId:'kiln.library.710f9ab0183deb86923b3c398286f9cbcb0eaea7ec50657a72fc83c2bd3c38cd.metallic-roughness'}}});
 wood.flatShading=true;wood.normalScale.set(.14,.14);wood.color.setHex(0xbe9b72);
 createPart('Trunk_and_major_branches',merge([
 limb([[0,0,0,.32],[.03,.25,.01,.255],[.06,1.15,.02,.205],[0,1.9,.04,.18],[.12,2.7,.03,.11],[.2,3.35,0,.045]]),
 limb([[.05,1.3,.01,.19],[.02,1.95,-.28,.16],[-.15,2.5,-.75,.105],[-.22,3,-.96,.04]]),
 limb([[.02,1.55,.05,.17],[-.05,2.13,.36,.14],[-.18,2.65,.83,.09],[-.3,3.06,1.05,.035]]),
 limb([[.01,1.8,.02,.16],[.4,2.3,.18,.12],[.77,2.87,.27,.045]]),
 limb([[0,1.95,0,.15],[-.4,2.45,-.02,.11],[-.82,3.08,.12,.04]])
 ]),wood,{parent:root});
 const moss=gameMaterial(0x798642,{roughness:1,metalness:0}),olive=gameMaterial(0x879447,{roughness:1,metalness:0}),sun=gameMaterial(0x94a04e,{roughness:1,metalness:0});
 createPart('Crown_west_and_east',merge([boulder([-.12,2.97,-.82],[1.05,.86,.96],2,1.86),boulder([-.22,2.95,.84],[1.05,.83,.94],6,1.86)]),moss,{parent:root});
 createPart('Crown_front_and_back',merge([boulder([.68,3.27,.06],[.92,.87,1.08],4,2.2),boulder([-.69,3.29,.03],[.93,.87,1.03],7,2.2)]),olive,{parent:root});
 createPart('Crown_upper_dome',boulder([.02,3.66,0],[1.12,.84,1.1],9,2.8),sun,{parent:root});
 return root;
}

Source SHA-256: f19c2b60aed5b04a47b7454614b3c2bdb20abbb7f087c8a719129d92f349d5ef

Named part paths (4)
  • FacetedTree/Mesh_Trunk_and_major_branches
  • FacetedTree/Mesh_Crown_west_and_east
  • FacetedTree/Mesh_Crown_front_and_back
  • FacetedTree/Mesh_Crown_upper_dome

Follow the saved revisions.

Originally authored by GPT-6 Astra. No separate refinement model is recorded for this delivery.

  1. first

    GPT-6 Astra · Codex 0.157.1

    Requested effort: high. Independently confirmed: high.

    r_6d5dd832c32b4d8682942980d02cde1b

Download the assets

Runtime assets

Models, textures and animations prepared for use in a scene or application.

123,176 bytes (0.12 MB)

Download runtime assets

Editable assets

Models plus Kiln source, editing metadata, materials and included revisions, so you can reopen and continue editing.

706,726 bytes (0.71 MB)

Download editable assets

CC0-1.0 covers authored asset content only, to the extent of the owner’s rights. Kiln, the scene code, Three.js, BVH, Field Grass and other components retain their own licenses.
