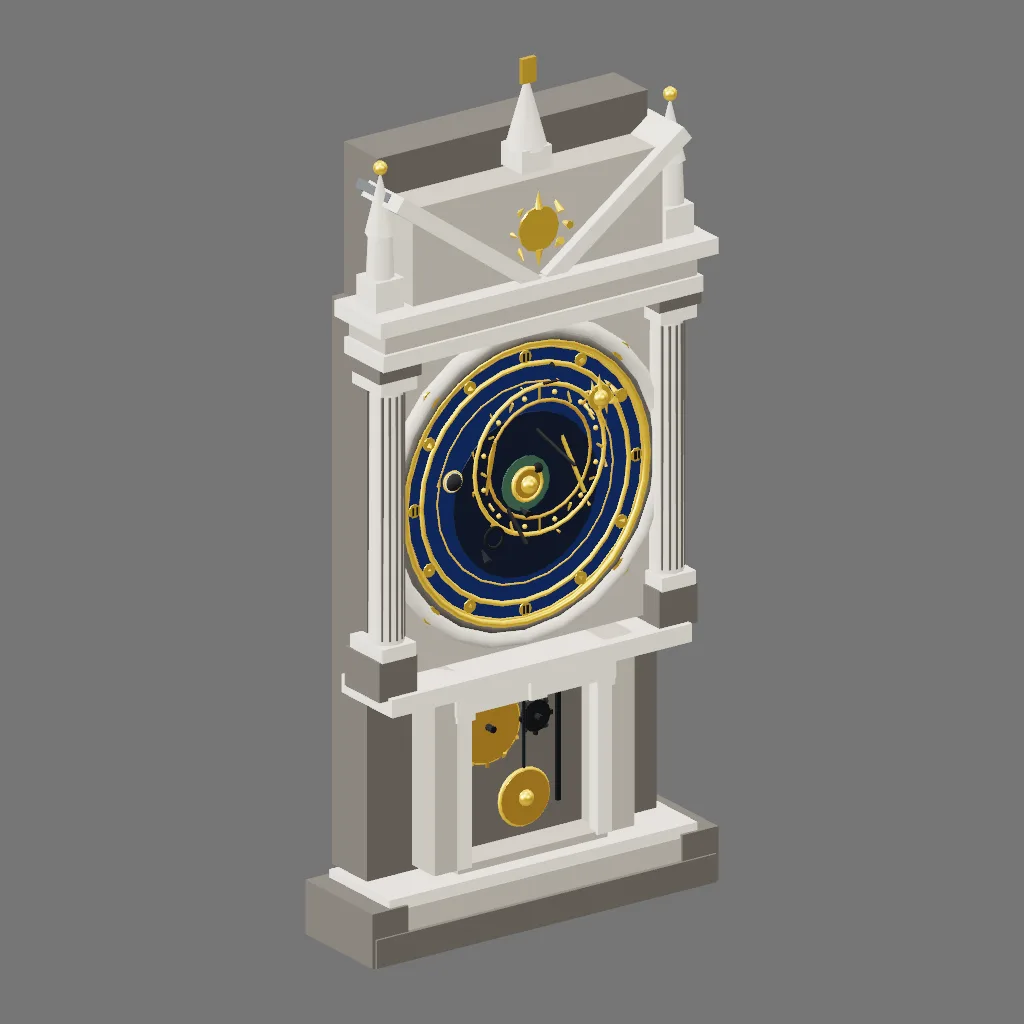

Historical gallery render of Astronomical clock; see the poster provenance below.

Drag to orbit after opening. The model starts stationary.

For your engine. The download is a standard glTF 2.0 binary (GLB) with PBR metallic-roughness materials. glTF stores materials, not lighting or tone mapping, so your engine decides how they read. This 3D view tone-maps with Review Neutral, the Khronos PBR Neutral construction with a smaller glare offset (0.015 instead of 0.04), at exposure 0.9. Its Tone mapping control also shows ACES and Linear, for comparison.

Build measurements

Triangles
9,324
Estimated draws
220
Materials
12
Textures
0
Animation clips
0
Bounds X × Y × Z
1.25 × 7.56 × 3.46 m
Build warnings
0

Measurements come from this build.

Download this build

Runtime: 211,664 bytes. Original: 211,432 bytes.

These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.

Runtime provenance metadata
SHA-256 download hashes
Runtime GLB
e19b0219394ef378e7527055dbdd11de4b6039794d12d49425b897d0b0e0b19d
Original GLB
0fa409d878f1c2e509f2e9f384da0a5a6d99cff7480eda08199580266dc694a1
Source
e74273d9661a27d9ec40eeeb1aae5bce5eb2f3ee8fecab15e4711d2330ad34c1

The example source is part of the Kiln repository. Repository licence: MIT.

These GLBs are build outputs of the MIT-licensed example source; no separate terms are stated for the builds.

Recorded authorship

Gemini 3.8 Flash through Antigravity CLI (agy)

Source-header credit

Source access
Source header declares no repository implementation or finished examples supplied
Inherited context
Not independently recorded; source-header declarations only
Starting example
None supplied, according to source header
Human input
Header declares no hand-authored source; other intervention not recorded
Authoring review
Six-view review declared; renderer fidelity not recorded

Picture rendered from an earlier revision of this source.

The source behind this build

astronomical-clock.kiln.js
// Maintainer revision: flush-face fix (2026-11-12, Claude Sonnet 5.5 via Claude Code): 2 part edits that separate coplanar faces; materials, names, hierarchy and animation are unchanged.
// Authored by: gemini-3.8-flash-high, via agy.
//
// Written by the model itself through the Kiln MCP tools: it wrote the
// program, rendered it, looked at its own six-view contact sheet, and
// revised. Not a line of it is hand-authored.
//
// Dispatched into a clean directory containing only the brief and the Kiln
// skills, with no access to this repository or to any finished example.

const meta = { name: 'AstronomicalClock', category: 'prop' };

function build() {
  const root = createRoot('AstronomicalClock');

  // --- Shared Materials ---
  const stoneLight = gameMaterial(0xa09a8f, { roughness: 0.85, metalness: 0.04 });
  const stoneMid = gameMaterial(0x7e786e, { roughness: 0.88, metalness: 0.05 });
  const stoneDark = gameMaterial(0x48443e, { roughness: 0.92, metalness: 0.06 });
  const stoneRoof = gameMaterial(0x3e4244, { roughness: 0.8, metalness: 0.1 }); // slate roofing
  const gilt = gameMaterial(0xdfb43a, { roughness: 0.32, metalness: 0.88 }); // polished gold leaf
  const brass = gameMaterial(0xba8f30, { roughness: 0.38, metalness: 0.82 });
  const dialBlue = gameMaterial(0x13274e, { roughness: 0.42, metalness: 0.18 }); // deep lapis/cobalt
  const dialDark = gameMaterial(0x0a1426, { roughness: 0.5, metalness: 0.15 }); // night horizon
  const dialEarth = gameMaterial(0x2d4838, { roughness: 0.6, metalness: 0.1 }); // terra centrum
  const iron = gameMaterial(0x1f2024, { roughness: 0.68, metalness: 0.72 }); // wrought iron
  const moonLight = gameMaterial(0xe8e5db, { roughness: 0.35, metalness: 0.35 });
  const moonDark = gameMaterial(0x151618, { roughness: 0.75, metalness: 0.2 });

  // =========================================================================
  // 1. PLINTH & FOUNDATION (sitting firmly on Y=0)
  // =========================================================================
  createPart('PlinthStep1', boxGeo(1.0, 0.25, 3.4), stoneDark, {
    position: [-0.15, 0.125, 0],
    parent: root
  });
  createPart('PlinthStep2', boxGeo(0.92, 0.2, 3.2), stoneMid, {
    position: [-0.15, 0.35, 0],
    parent: root
  });
  createPart('PlinthMoulding', boxGeo(0.86, 0.1, 3.08), stoneLight, {
    position: [-0.13, 0.5, 0],
    parent: root
  });

  for (const side of [-1, 1]) {
    createPart(`PlinthButtress_${side}`, boxGeo(0.96, 0.48, 0.36), stoneDark, {
      position: [-0.15, 0.24, side * 1.55],
      parent: root
    });
  }

  createPart('TowerBackWall', boxGeo(0.5, 5.0, 2.9), stoneDark, {
    position: [-0.4, 3.05, 0],
    parent: root
  });
  createPart('TowerBackGable', boxGeo(0.48, 1.4, 2.7), stoneDark, {
    position: [-0.38, 6.2, 0],
    parent: root
  });

  // =========================================================================
  // 2. LOWER NICHE: CLOCKWORK & PENDULUM CHAMBER (Y = 0.55 to 2.3)
  // =========================================================================
  createPart('ChamberBack', boxGeo(0.1, 1.694, 1.5), stoneDark, {
    position: [-0.22, 1.451, 0],
    parent: root
  });
  createPart('ChamberFloor', boxGeo(0.4, 0.08, 1.5), stoneMid, {
    position: [-0.05, 0.58, 0],
    parent: root
  });
  createPart('ChamberWallLeft', boxGeo(0.45, 1.696, 0.3), stoneMid, {
    position: [-0.05, 1.45, -0.85],
    parent: root
  });
  createPart('ChamberWallRight', boxGeo(0.45, 1.696, 0.3), stoneMid, {
    position: [-0.05, 1.45, 0.85],
    parent: root
  });

  for (const side of [-1, 1]) {
    createPart(`NicheJamb_${side}`, boxGeo(0.12, 1.3, 0.14), stoneLight, {
      position: [0.12, 1.25, side * 0.7],
      parent: root
    });
    createPart(`NicheJambCap_${side}`, boxGeo(0.16, 0.08, 0.18), stoneLight, {
      position: [0.12, 1.94, side * 0.7],
      parent: root
    });
  }
  createPart('NicheLintel', boxGeo(0.18, 0.18, 1.6), stoneLight, {
    position: [0.11, 2.05, 0],
    parent: root
  });
  createPart('NicheKeystone', boxGeo(0.22, 0.24, 0.16), stoneLight, {
    position: [0.13, 2.08, 0],
    parent: root
  });

  // Clockwork Mechanism inside chamber
  createPart('GearBigDisc', cylinderXGeo(0.32, 0.32, 0.03, 16), brass, {
    position: [-0.15, 1.65, 0.25],
    parent: root
  });
  createPart('GearBigRim', torusGeo(0.32, 0.015, 6, 20), gilt, {
    position: [-0.15, 1.65, 0.25],
    rotation: [0, 90, 0],
    parent: root
  });
  for (let t = 0; t < 12; t++) {
    const tAng = (t / 12) * Math.PI * 2;
    createPart(`GearBigTooth_${t}`, boxGeo(0.03, 0.06, 0.03), brass, {
      position: [-0.15, 1.65 + Math.cos(tAng) * 0.33, 0.25 + Math.sin(tAng) * 0.33],
      rotation: [0, 0, -(tAng * 180 / Math.PI)],
      parent: root
    });
  }

  createPart('GearPinionDisc', cylinderXGeo(0.14, 0.14, 0.04, 12), iron, {
    position: [-0.13, 1.65, -0.22],
    parent: root
  });
  for (let p = 0; p < 8; p++) {
    const pAng = (p / 8) * Math.PI * 2;
    createPart(`GearPinTooth_${p}`, boxGeo(0.04, 0.04, 0.025), iron, {
      position: [-0.13, 1.65 + Math.cos(pAng) * 0.15, -0.22 + Math.sin(pAng) * 0.15],
      rotation: [0, 0, -(pAng * 180 / Math.PI)],
      parent: root
    });
  }

  createPart('GearArborBig', cylinderXGeo(0.03, 0.03, 0.18, 8), iron, {
    position: [-0.14, 1.65, 0.25],
    parent: root
  });
  createPart('GearArborSmall', cylinderXGeo(0.025, 0.025, 0.18, 8), iron, {
    position: [-0.13, 1.65, -0.22],
    parent: root
  });
  // The movement frame, bolted to the back wall rather than standing 30 mm in
  // front of it. The wall face is at x = -0.15 and these uprights were centred
  // at -0.10, which left the left-hand one touching nothing at all -- the right
  // one only escaped the warning because a gear arbor happened to reach it.
  // At -0.14 both bite 10 mm into the stone, which is where a clock frame is
  // actually fixed.
  createPart('FrameStrutLeft', boxGeo(0.04, 1.2, 0.04), iron, {
    position: [-0.14, 1.45, -0.45],
    parent: root
  });
  createPart('FrameStrutRight', boxGeo(0.04, 1.2, 0.04), iron, {
    position: [-0.14, 1.45, 0.45],
    parent: root
  });

  // PENDULUM ASSEMBLY (Lifted cleanly above the chamber floor)
  const pendulumPivot = createPivot('Pendulum', [0.02, 2.15, 0], root);
  createPart('SuspensionBlock', boxGeo(0.06, 0.08, 0.08), iron, {
    position: [0, 0, 0],
    parent: pendulumPivot
  });
  createPart('PendulumRod', cylinderGeo(0.014, 0.014, 1.2, 8), iron, {
    position: [0, -0.6, 0],
    parent: pendulumPivot
  });
  createPart('PendulumBobLens', cylinderXGeo(0.24, 0.24, 0.05, 20), brass, {
    position: [0, -1.12, 0],
    parent: pendulumPivot
  });
  createPart('PendulumBobRim', torusGeo(0.24, 0.02, 6, 20), gilt, {
    position: [0, -1.12, 0],
    rotation: [0, 90, 0],
    parent: pendulumPivot
  });
  createPart('PendulumBobCenter', sphereGeo(0.07, 10, 8), gilt, {
    position: [0.028, -1.12, 0],
    parent: pendulumPivot
  });
  createPart('PendulumRatingNut', cylinderGeo(0.022, 0.022, 0.08, 8), brass, {
    position: [0, -1.28, 0],
    parent: pendulumPivot
  });

  // =========================================================================
  // 3. MAIN STONE SURROUND & FLANKING PILASTERS (Y = 2.1 to 5.3)
  // =========================================================================
  const dialCenterY = 3.8;
  const dialRadius = 1.22;

  createPart('MidCornice', boxGeo(0.72, 0.16, 3.0), stoneLight, {
    position: [-0.08, 2.22, 0],
    parent: root
  });

  createPart('DialSurroundWall', boxGeo(0.3, 2.9, 2.8), stoneMid, {
    position: [-0.15, dialCenterY, 0],
    parent: root
  });

  for (const side of [-1, 1]) {
    const z = side * 1.4;
    createPart(`PilasterPlinth_${side}`, boxGeo(0.5, 0.35, 0.38), stoneDark, {
      position: [-0.02, 2.45, z],
      parent: root
    });
    createPart(`PilasterBaseMould_${side}`, boxGeo(0.46, 0.12, 0.34), stoneLight, {
      position: [0.01, 2.68, z],
      parent: root
    });
    createPart(`PilasterShaft_${side}`, cylinderGeo(0.14, 0.15, 2.25, 12), stoneLight, {
      position: [0.06, 3.85, z],
      parent: root
    });
    for (let f = -2; f <= 2; f++) {
      const fAng = (f * 25) * Math.PI / 180;
      createPart(`Flute_${side}_${f}`, boxGeo(0.02, 2.15, 0.02), stoneDark, {
        position: [0.06 + Math.cos(fAng) * 0.14, 3.85, z + Math.sin(fAng) * 0.14],
        parent: root
      });
    }
    createPart(`PilasterCapitalMould_${side}`, boxGeo(0.42, 0.12, 0.36), stoneLight, {
      position: [0.03, 5.03, z],
      parent: root
    });
    createPart(`PilasterAbacus_${side}`, boxGeo(0.48, 0.12, 0.42), stoneDark, {
      position: [0.02, 5.15, z],
      parent: root
    });
  }

  createPart('ArchivoltOuter', torusGeo(1.36, 0.07, 6, 24), stoneLight, {
    position: [0.02, dialCenterY, 0],
    rotation: [0, 90, 0],
    parent: root
  });
  createPart('ArchivoltInner', torusGeo(1.26, 0.04, 6, 24), stoneDark, {
    position: [0.03, dialCenterY, 0],
    rotation: [0, 90, 0],
    parent: root
  });

  const spandrelR = 1.32;
  for (const sy of [-1, 1]) {
    for (const sz of [-1, 1]) {
      createPart(`SpandrelBoss_${sy}_${sz}`, cylinderXGeo(0.08, 0.08, 0.04, 10), gilt, {
        position: [0.04, dialCenterY + sy * spandrelR * 0.72, sz * spandrelR * 0.72],
        parent: root
      });
    }
  }

  // =========================================================================
  // 4. CANOPY, ENTABLATURE & GOTHIC PEDIMENT (Y = 5.2 to 6.8)
  // =========================================================================
  createPart('Architrave', boxGeo(0.56, 0.14, 3.2), stoneLight, {
    position: [0.02, 5.28, 0],
    parent: root
  });
  createPart('Frieze', boxGeo(0.52, 0.2, 3.12), stoneMid, {
    position: [0.01, 5.45, 0],
    parent: root
  });
  for (let c = -4; c <= 4; c++) {
    createPart(`Corbel_${c}`, boxGeo(0.18, 0.12, 0.08), stoneLight, {
      position: [0.15, 5.46, c * 0.35],
      parent: root
    });
  }
  createPart('CorniceBand', boxGeo(0.66, 0.14, 3.38), stoneLight, {
    position: [0.06, 5.62, 0],
    parent: root
  });

  createPart('TympanumWall', boxGeo(0.4, 0.9, 2.5), stoneMid, {
    position: [0.02, 6.1, 0],
    parent: root
  });
  createPart('TympanumSun', cylinderXGeo(0.2, 0.2, 0.04, 12), gilt, {
    position: [0.22, 6.1, 0],
    parent: root
  });
  for (let tr = 0; tr < 8; tr++) {
    const trAng = (tr / 8) * Math.PI * 2;
    createPart(`TympanumRay_${tr}`, coneGeo(0.04, 0.16, 5), gilt, {
      position: [0.23, 6.1 + Math.cos(trAng) * 0.26, Math.sin(trAng) * 0.26],
      rotation: [0, 0, (-tr * 45)],
      parent: root
    });
  }

  const rakeLength = 1.7;
  createPart('GableRakeLeft', boxGeo(0.5, 0.14, rakeLength), stoneLight, {
    position: [0.06, 6.15, -0.75],
    rotation: [36, 0, 0],
    parent: root
  });
  createPart('GableRakeRight', boxGeo(0.5, 0.14, rakeLength), stoneLight, {
    position: [0.06, 6.15, 0.75],
    rotation: [-36, 0, 0],
    parent: root
  });

  createPart('RoofSlopeLeft', boxGeo(0.46, 0.08, rakeLength), stoneRoof, {
    position: [-0.08, 6.16, -0.75],
    rotation: [36, 0, 0],
    parent: root
  });
  createPart('RoofSlopeRight', boxGeo(0.46, 0.08, rakeLength), stoneRoof, {
    position: [-0.08, 6.16, 0.75],
    rotation: [-36, 0, 0],
    parent: root
  });

  createPart('PinnacleApexBase', boxGeo(0.3, 0.2, 0.3), stoneLight, {
    position: [0.06, 6.7, 0],
    parent: root
  });
  createPart('PinnacleApexSpire', coneGeo(0.18, 0.65, 8), stoneLight, {
    position: [0.06, 7.1, 0],
    parent: root
  });
  createPart('ApexGiltCross', boxGeo(0.04, 0.22, 0.14), gilt, {
    position: [0.08, 7.45, 0],
    parent: root
  });

  for (const side of [-1, 1]) {
    const pz = side * 1.45;
    createPart(`PinnacleBase_${side}`, boxGeo(0.28, 0.3, 0.28), stoneLight, {
      position: [0.04, 5.8, pz],
      parent: root
    });
    createPart(`PinnacleShaft_${side}`, cylinderGeo(0.1, 0.12, 0.45, 8), stoneLight, {
      position: [0.04, 6.15, pz],
      parent: root
    });
    createPart(`PinnacleSpire_${side}`, coneGeo(0.13, 0.55, 8), stoneLight, {
      position: [0.04, 6.6, pz],
      parent: root
    });
    createPart(`PinnacleBall_${side}`, sphereGeo(0.06, 10, 8), gilt, {
      position: [0.04, 6.9, pz],
      parent: root
    });
  }

  // =========================================================================
  // 5. ASTRONOMICAL CLOCK FACE (Facing +X, normal along +X)
  // =========================================================================
  createPart('DialSkyDisc', cylinderXGeo(dialRadius, dialRadius, 0.035, 32), dialBlue, {
    position: [0.02, dialCenterY, 0],
    parent: root
  });
  createPart('DialHorizonDisc', cylinderXGeo(0.72, 0.72, 0.04, 24), dialDark, {
    position: [0.024, dialCenterY - 0.1, 0],
    parent: root
  });
  createPart('DialEarthDisc', cylinderXGeo(0.24, 0.24, 0.045, 16), dialEarth, {
    position: [0.028, dialCenterY, 0],
    parent: root
  });

  createPart('RingTropicCancer', torusGeo(1.18, 0.015, 6, 28), gilt, {
    position: [0.03, dialCenterY, 0],
    rotation: [0, 90, 0],
    parent: root
  });
  createPart('RingEquator', torusGeo(0.88, 0.012, 6, 24), gilt, {
    position: [0.03, dialCenterY, 0],
    rotation: [0, 90, 0],
    parent: root
  });
  createPart('RingTropicCapricorn', torusGeo(0.55, 0.012, 6, 24), gilt, {
    position: [0.03, dialCenterY, 0],
    rotation: [0, 90, 0],
    parent: root
  });

  createPart('DialOuterGiltBezel', torusGeo(dialRadius, 0.038, 8, 32), gilt, {
    position: [0.035, dialCenterY, 0],
    rotation: [0, 90, 0],
    parent: root
  });
  createPart('DialInnerGiltBezel', torusGeo(1.04, 0.024, 6, 28), gilt, {
    position: [0.035, dialCenterY, 0],
    rotation: [0, 90, 0],
    parent: root
  });

  for (let h = 0; h < 12; h++) {
    const hAngle = (h / 12) * Math.PI * 2;
    const hy = dialCenterY + Math.cos(hAngle) * 1.11;
    const hz = Math.sin(hAngle) * 1.11;
    const rotDeg = -h * 30;

    createPart(`HourCartouche_${h}`, cylinderXGeo(0.06, 0.06, 0.018, 10), gilt, {
      position: [0.038, hy, hz],
      parent: root
    });

    if (h === 0) {
      createPart('Num_XII_L', boxGeo(0.022, 0.07, 0.015), iron, {
        position: [0.048, hy, hz - 0.02],
        parent: root
      });
      createPart('Num_XII_R', boxGeo(0.022, 0.07, 0.015), iron, {
        position: [0.048, hy, hz + 0.02],
        parent: root
      });
    } else if (h === 3) {
      createPart('Num_III_1', boxGeo(0.022, 0.07, 0.012), iron, {
        position: [0.048, hy, hz - 0.02],
        parent: root
      });
      createPart('Num_III_2', boxGeo(0.022, 0.07, 0.012), iron, {
        position: [0.048, hy, hz + 0.02],
        parent: root
      });
    } else if (h === 6) {
      createPart('Num_VI_V', boxGeo(0.022, 0.07, 0.02), iron, {
        position: [0.048, hy, hz - 0.015],
        parent: root
      });
      createPart('Num_VI_I', boxGeo(0.022, 0.07, 0.012), iron, {
        position: [0.048, hy, hz + 0.02],
        parent: root
      });
    } else if (h === 9) {
      createPart('Num_IX_I', boxGeo(0.022, 0.07, 0.012), iron, {
        position: [0.048, hy, hz - 0.02],
        parent: root
      });
      createPart('Num_IX_X', boxGeo(0.022, 0.07, 0.02), iron, {
        position: [0.048, hy, hz + 0.015],
        parent: root
      });
    } else {
      createPart(`HourStud_${h}`, coneGeo(0.03, 0.035, 4), gilt, {
        position: [0.048, hy, hz],
        rotation: [0, 0, rotDeg + 45],
        parent: root
      });
    }
  }

  // =========================================================================
  // 6. INNER ROTATING ZODIAC RING (Eccentric Astrolabe Ecliptic Circle)
  // =========================================================================
  const zodiacCenterY = dialCenterY + 0.18;
  const zodiacCenterZ = -0.14;
  const zodiacR = 0.65;
  const zodiacBandWidth = 0.14;

  createPart('ZodiacOuterRim', torusGeo(zodiacR, 0.02, 6, 28), gilt, {
    position: [0.042, zodiacCenterY, zodiacCenterZ],
    rotation: [0, 90, 0],
    parent: root
  });
  createPart('ZodiacInnerRim', torusGeo(zodiacR - zodiacBandWidth, 0.016, 6, 24), brass, {
    position: [0.042, zodiacCenterY, zodiacCenterZ],
    rotation: [0, 90, 0],
    parent: root
  });

  for (let z = 0; z < 12; z++) {
    const zAng = (z / 12) * Math.PI * 2;
    const midRad = zodiacR - (zodiacBandWidth * 0.5);
    const zy = zodiacCenterY + Math.cos(zAng) * midRad;
    const zz = zodiacCenterZ + Math.sin(zAng) * midRad;
    const zRot = -z * 30;

    createPart(`ZodiacDivider_${z}`, boxGeo(0.018, zodiacBandWidth, 0.014), gilt, {
      position: [0.044, zy, zz],
      rotation: [0, 0, zRot],
      parent: root
    });

    const starAng = zAng + (Math.PI / 12);
    const starY = zodiacCenterY + Math.cos(starAng) * midRad;
    const starZ = zodiacCenterZ + Math.sin(starAng) * midRad;
    createPart(`ZodiacStar_${z}`, sphereGeo(0.022, 8, 6), gilt, {
      position: [0.046, starY, starZ],
      parent: root
    });
    createPart(`ZodiacPointer_${z}`, coneGeo(0.016, 0.07, 4), brass, {
      position: [0.044, zodiacCenterY + Math.cos(starAng) * (zodiacR + 0.035), zodiacCenterZ + Math.sin(starAng) * (zodiacR + 0.035)],
      rotation: [0, 0, -(starAng * 180 / Math.PI) - 90],
      parent: root
    });
  }

  // =========================================================================
  // 7. ARBOR, SUN HAND, MOON PHASE SPHERE & IRON HANDS
  // =========================================================================
  createPart('CenterArborBase', cylinderXGeo(0.14, 0.16, 0.06, 16), brass, {
    position: [0.05, dialCenterY, 0],
    parent: root
  });
  createPart('CenterArborBezel', torusGeo(0.14, 0.018, 6, 16), gilt, {
    position: [0.075, dialCenterY, 0],
    rotation: [0, 90, 0],
    parent: root
  });
  createPart('CenterArborDome', sphereGeo(0.075, 10, 8), gilt, {
    position: [0.09, dialCenterY, 0],
    parent: root
  });

  const sunAngle = -Math.PI * 0.28;
  const sunPivot = createPivot('SunHand', [0.056, dialCenterY, 0], root);
  createPart('SunHandArm', boxGeo(0.022, 0.96, 0.026), gilt, {
    position: [0, 0.48 * Math.cos(sunAngle), 0.48 * Math.sin(sunAngle)],
    rotation: [0, 0, (sunAngle * 180 / Math.PI) + 90],
    parent: sunPivot
  });
  const sunDist = 0.94;
  const sunPosY = sunDist * Math.cos(sunAngle);
  const sunPosZ = sunDist * Math.sin(sunAngle);

  createPart('SunDiscCore', cylinderXGeo(0.11, 0.11, 0.022, 16), gilt, {
    position: [0.01, sunPosY, sunPosZ],
    parent: sunPivot
  });
  createPart('SunFaceEmboss', sphereGeo(0.07, 10, 8), gilt, {
    position: [0.02, sunPosY, sunPosZ],
    parent: sunPivot
  });
  for (let r = 0; r < 12; r++) {
    const rAng = (r / 12) * Math.PI * 2;
    const rayR = 0.14;
    const ry = sunPosY + Math.cos(rAng) * rayR;
    const rz = sunPosZ + Math.sin(rAng) * rayR;
    if (r % 2 === 0) {
      createPart(`SunRayLong_${r}`, coneGeo(0.028, 0.14, 5), gilt, {
        position: [0.01, ry, rz],
        rotation: [0, 0, (-r * 30)],
        parent: sunPivot
      });
    } else {
      createPart(`SunRayShort_${r}`, coneGeo(0.022, 0.09, 4), brass, {
        position: [0.01, ry, rz],
        rotation: [0, 0, (-r * 30) + 45],
        parent: sunPivot
      });
    }
  }

  const moonAngle = Math.PI * 0.42;
  const moonPivot = createPivot('MoonHand', [0.065, dialCenterY, 0], root);
  createPart('MoonHandArm', boxGeo(0.02, 0.8, 0.02), brass, {
    position: [0, 0.4 * Math.cos(moonAngle), 0.4 * Math.sin(moonAngle)],
    rotation: [0, 0, (moonAngle * 180 / Math.PI) + 90],
    parent: moonPivot
  });
  const moonDist = 0.78;
  const moonY = moonDist * Math.cos(moonAngle);
  const moonZ = moonDist * Math.sin(moonAngle);

  createPart('MoonSphereDark', sphereGeo(0.082, 12, 10), moonDark, {
    position: [0.01, moonY, moonZ],
    parent: moonPivot
  });
  createPart('MoonPhaseLightCap', cylinderXGeo(0.084, 0.084, 0.025, 16), moonLight, {
    position: [0.02, moonY, moonZ],
    parent: moonPivot
  });
  createPart('MoonPhaseGiltBezel', torusGeo(0.086, 0.012, 6, 16), gilt, {
    position: [0.02, moonY, moonZ],
    rotation: [0, 90, 0],
    parent: moonPivot
  });
  createPart('MoonCrescentTip', coneGeo(0.018, 0.11, 5), brass, {
    position: [0.01, (moonDist + 0.13) * Math.cos(moonAngle), (moonDist + 0.13) * Math.sin(moonAngle)],
    rotation: [0, 0, (moonAngle * 180 / Math.PI) - 90],
    parent: moonPivot
  });

  const ironHourAng = Math.PI * 0.78;
  const hourPivot = createPivot('IronHourHand', [0.076, dialCenterY, 0], root);
  createPart('IronHourStem', boxGeo(0.018, 0.62, 0.03), iron, {
    position: [0, 0.28 * Math.cos(ironHourAng), 0.28 * Math.sin(ironHourAng)],
    rotation: [0, 0, (ironHourAng * 180 / Math.PI) + 90],
    parent: hourPivot
  });
  createPart('IronHourRing', torusGeo(0.09, 0.016, 6, 16), iron, {
    position: [0, 0.52 * Math.cos(ironHourAng), 0.52 * Math.sin(ironHourAng)],
    rotation: [0, 90, 0],
    parent: hourPivot
  });
  createPart('IronHourSpadeTip', coneGeo(0.042, 0.15, 4), iron, {
    position: [0, 0.68 * Math.cos(ironHourAng), 0.68 * Math.sin(ironHourAng)],
    rotation: [0, 0, (ironHourAng * 180 / Math.PI) - 90],
    parent: hourPivot
  });
  createPart('IronHourCounter', sphereGeo(0.045, 8, 6), iron, {
    position: [0, -0.16 * Math.cos(ironHourAng), -0.16 * Math.sin(ironHourAng)],
    parent: hourPivot
  });

  const ironMinAng = -Math.PI * 0.08;
  const minPivot = createPivot('IronMinuteHand', [0.086, dialCenterY, 0], root);
  createPart('IronMinStem', boxGeo(0.016, 1.05, 0.024), iron, {
    position: [0, 0.45 * Math.cos(ironMinAng), 0.45 * Math.sin(ironMinAng)],
    rotation: [0, 0, (ironMinAng * 180 / Math.PI) + 90],
    parent: minPivot
  });
  createPart('IronMinSpear', coneGeo(0.032, 0.16, 4), iron, {
    position: [0, 1.02 * Math.cos(ironMinAng), 1.02 * Math.sin(ironMinAng)],
    rotation: [0, 0, (ironMinAng * 180 / Math.PI) - 90],
    parent: minPivot
  });
  createPart('IronMinCrossbar', boxGeo(0.014, 0.02, 0.14), iron, {
    position: [0, 0.88 * Math.cos(ironMinAng), 0.88 * Math.sin(ironMinAng)],
    rotation: [0, 0, (ironMinAng * 180 / Math.PI) + 90],
    parent: minPivot
  });
  createPart('IronMinCounter', coneGeo(0.036, 0.15, 5), iron, {
    position: [0, -0.22 * Math.cos(ironMinAng), -0.22 * Math.sin(ironMinAng)],
    rotation: [0, 0, (ironMinAng * 180 / Math.PI) + 90],
    parent: minPivot
  });

  return root;
}

Brief and retained revisions

No brief or earlier revisions are recorded. The source download contains the version built for this page.
